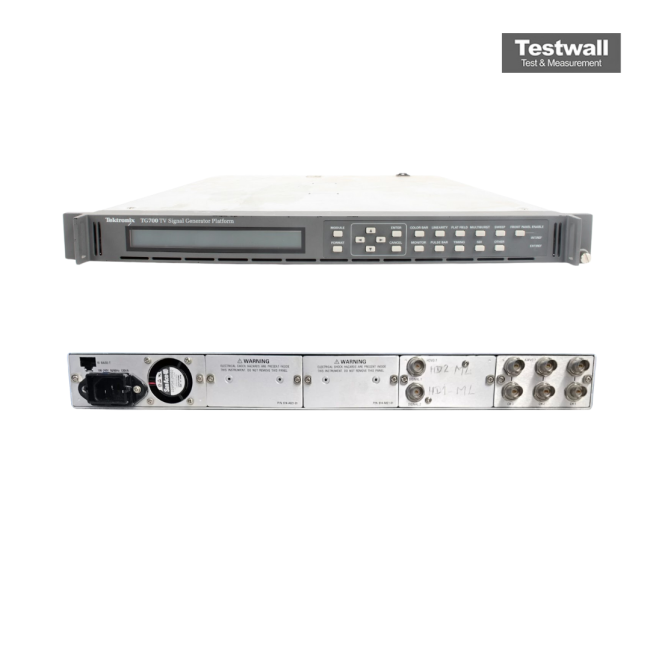

Tektronix TG700
| Attribute | Value |
|---|---|
| Form Factor | Modular mainframe chassis |
| Number of Module Slots | Up to 10 slots for signal generator modules |
| Supported Signal Types | Black burst, tri-level sync, HDTV, SDI, analog video, audio, and reference signals |
| Video Standards Supported | NTSC, PAL, HDTV (720p, 1080i, 1080p), and various SMPTE standards |
| Reference Output | Black burst and tri-level sync reference signal outputs for synchronization of broadcast equipment |
| Power Supply | Internal universal power supply, 100–240 VAC, 50/60 Hz |
| Remote Control Interface | Ethernet (LAN), GPIB, and RS-232 remote control interfaces supported |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
| Dimensions (H x W x D) | Approximately 88.9 mm x 482.6 mm x 457.2 mm (3.5 in x 19 in x 18 in), 2U rack-mountable |
Tektronix TG700 Multifunction Video Generator Options:
- TG700 - 88 - Module Installation
- TG700 - AG7 - Audio Generator
- TG700 - AGL7 - Analog Genlock
- TG700 - ATG7 - Analog Test Generator Module
- TG700 - AVG7 - Component And Composite Analog Video Generator Module
- TG700 - AWVG7 - Analog Wideband Video Generator Module
- TG700 - BG7 - Black Generator
- TG700 - BK - Add Sdi Black Outputs
- TG700 - CB - Add Ntsc/Pal Color Bar
- TG700 - D1 - Calibration Data Report In English/Japanese
- TG700 - DVG7 - Digital Video Generator
- TG700 - GPS7 - Gps Synchronization And Timecode Module
- TG700 - HD3G7 - 3 Gb/S Sdi Video Generator
- TG700 - HDLG7 - Hd Dual Link Video Generator
- TG700 - HDVG7 - Hdtv Digital Video Generator
| Model | TG700 |
|---|
The Tektronix TG700 Multifunction Video Generator is a precision signal-generation mainframe offering sync-pulse and test-signal outputs across analog, serial digital, and HD formats. It features modular expansion (up to four slots) allowing analog, digital, and wideband modules like AVG7, AWVG7, HDVG7, and GPS7. Equipped with high-stability reference and selectable black outputs for HDTV tri-level, NTSC, or PAL, it ensures versatile format coverage for broadcast needs.
Ideal for broadcast, production, post-production, R&D, and maintenance, the TG700 supports both reference generation and comprehensive testing workflows with customizable module configurations.
Testwall can supply the used Tektronix TG700 Multifunction Video Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TG700 Multifunction Video Generator.
