Tektronix
Tektronix WVR7100
Rectangular Waveguide Noise Source
SD, HD, 3 Gb/s SMPTE 424M, dual-link HD Signal Formats Supported
4 inputs (2 channels with loop-through) Number of SDI Inputs
Rasterizer with external monitor output (no built-in display) Display Type
Embedded audio, AES/EBU, Dolby E/D/D+ decode (optional) Audio Monitoring
Eye diagram, jitter measurement, and cable length detection supported Eye Pattern and Jitter Analysis
| Attribute | Value |
|---|---|
| Signal Formats Supported | SD, HD, 3 Gb/s SMPTE 424M, dual-link HD |
| Number of SDI Inputs | 4 inputs (2 channels with loop-through) |
| Display Type | Rasterizer with external monitor output (no built-in display) |
| Audio Monitoring | Embedded audio, AES/EBU, Dolby E/D/D+ decode (optional) |
| Eye Pattern and Jitter Analysis | Eye diagram, jitter measurement, and cable length detection supported |
| Gamut Monitoring | Arrowhead, Diamond, and Split Diamond displays for composite and component gamut |
| Reference Input | Black burst and tri-level sync reference input supported |
| Closed Captioning Support | CEA 608/708 closed caption monitoring and decode |
| Timecode Support | VITC, LTC, and ATC timecode reading and display |
| Connectivity and Remote Control | Ethernet interface for remote control, monitoring, and software upgrades |
Tektronix WVR7100 Options:
- WVR7100 - Opt. SD - Add SD-SDI (ITU-R BT.601) monitoring. Uses same physical inputs as the HD – autodetect between SD and HD.
- WVR7100 - Opt. CPS - Add Analog Composite monitoring (NTSC and PAL). Two passive loopthrough inputs.
- WVR7100 - Opt. DS - Digital audio monitoring in embedded and AES/EBU formats.
- WVR7100 - Opt. AD - Analog audio and digital audio in embedded and AES/EBU formats.
- WVR7100 - Opt. DD - Analog and digital audio with Dolby Digital (AC-3) decode and monitoring.
- WVR7100 - Opt. DDE - Analog and digital audio with Dolby Digital (AC-3) and Dolby E decode and monitoring.
- WVR7100 - Opt. A0 - US Power.
- WVR7100 - Opt. A1 - Euro Power.
- WVR7100 - Opt. A2 - UK Power.
- WVR7100 - Opt. A3 - Australia Power.
- WVR7100 - Opt. A5 - Swiss Power.
- WVR7100 - Opt. A6 - Japan Power.
- WVR7100 - Opt. A10 - China Power.
- WVR7100 - Opt. C3 - Calibration Service 3 Years.
- WVR7100 - Opt. C5 - Calibration Service 5 Years.
- WVR7100 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3).
- WVR7100 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5).
- WVR7100 - Opt. R3 - Repair Service 3 Years (including warranty).
- WVR7100 - Opt. R5 - Repair Service 5 Years (including warranty).
| Model | WVR7100 |
|---|

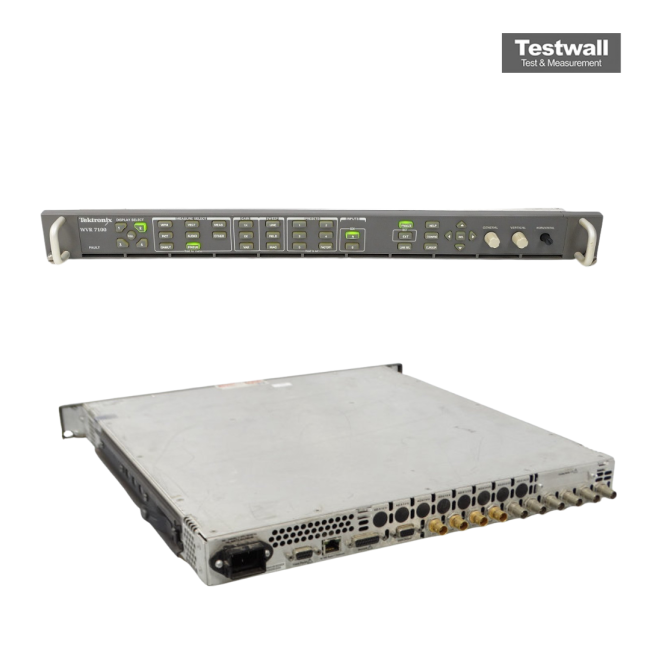

The Tektronix WVR7100 is a 2U rackmount video signal analyzer designed for SD and HD formats with support for waveform and vector display modes like Parade, Overlay, Traditional, and Split Diamond.
Equipped with CPS, DDE, and Eye Pattern Analysis, it delivers accurate physical layer monitoring, ideal for production and post-production environments needing colorimetry and timing tools.
Testwall can supply the used Tektronix WVR7100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WVR7100.
