Teladyne LeCroy CP150
| Attribute | Value |
|---|---|
| Bandwidth | 150 MHz |
| Maximum DC Current | 150 A DC |
| Maximum Peak Current | 500 A (pulse width ≤ 10 ms) |
| Current Sensitivity | 10 mV/A |
| Rise Time | 2.3 ns |
| Conductor Aperture | 5 mm diameter |
| Output Connector | BNC |
| Power Requirements | ±15 V, 150 mA (via probe power supply) |
| Operating Temperature | 0°C to 50°C |
| Cable Length | 1.8 m (approximately 6 ft) |
Teladyne LeCroy CP150 Options:
- CP150 - CP030 - 30 A; 50 MHz Current Probe – AC/DC; 30 Arms; 50 A Peak Pulse
- CP150 - CP030A - 30 A; 50 MHz High Sensitivity Current Probe – AC/DC; 30 Arms; 50 A Peak Pulse
- CP150 - CP031 - 30 A; 100 MHz Current Probe – AC/DC; 30 Arms; 50 A Peak Pulse
- CP150 - CP031A - 30 A; 100 MHz High Sensitivity Current Probe – AC/DC; 30 Arms; 50 A Peak Pulse
- CP150 - CP500 - 500 A; 2 MHz Current Probe – AC/DC; 500 Arms; 700 A Peak Pulse
- CP150 - DCS015 - Deskew Calibration Source for CP031, CP031A, CP030, CP030A and AP015
| Model | CP150 |
|---|

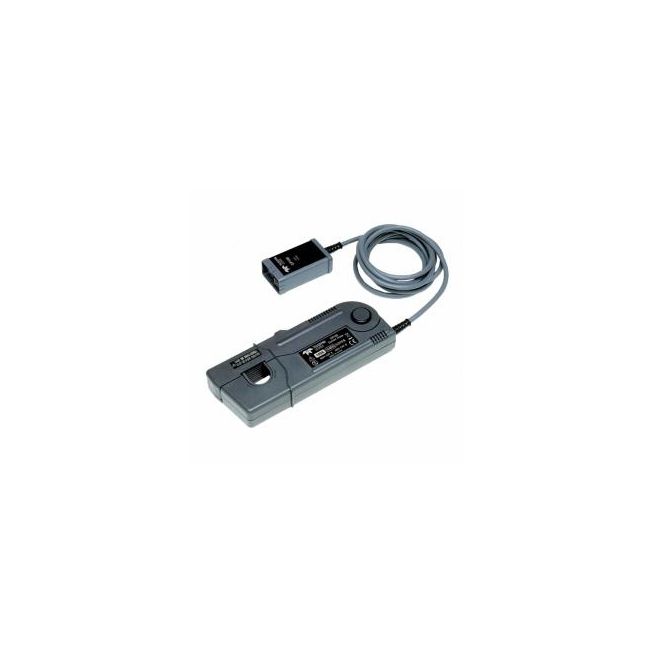

The Teledyne LeCroy CP150 is a high-performance heavy-current probe engineered for accurate measurements up to 150 Arms continuous and 500 A peak. It offers a 10 MHz bandwidth (5 MHz in long-cable version) with exceptional sensitivity of 100 mA/div. Its 20 mm jaw accommodates large conductors, while the ProBus interface ensures seamless oscilloscope connectivity.
This probe is ideal for demanding power system testing and engineering validation, especially in environments with high currents. The CP150 supports precise, reliable analysis in both lab and field applications.
Testwall can supply the used Teledyne LeCroy CP150, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy CP150.
