Teledyne LeCroy

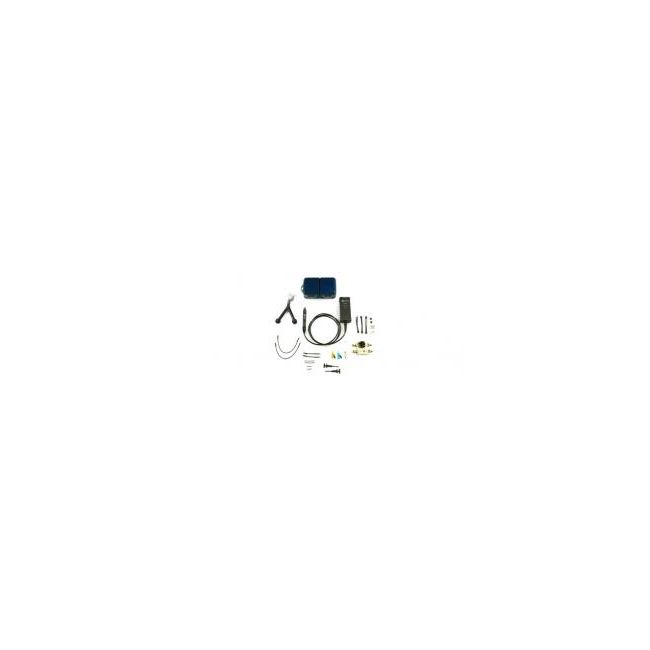

Teladyne LeCroy ZD500
Differential Probe, 500 MHz 1.0 pF, 1MOhm
500 MHz Bandwidth
Differential Active Probe Probe Type
±15 V (differential) Input Voltage Range
±15 V Common Mode Voltage Range
10 MΩ // 5 pF (each input to ground) Input Impedance
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Probe Type | Differential Active Probe |
| Input Voltage Range | ±15 V (differential) |
| Common Mode Voltage Range | ±15 V |
| Input Impedance | 10 MΩ // 5 pF (each input to ground) |
| Attenuation Ratio | 10:1 / 100:1 (selectable) |
| Common Mode Rejection Ratio (CMRR) | >60 dB at 1 MHz |
| Rise Time | ≤700 ps |
| Operating Temperature | 0°C to 50°C |
| Power Supply | Powered via probe interface (compatible with Teledyne LeCroy oscilloscopes) |
Teladyne LeCroy ZD500 Options:
- ZD500 - ZD1000 - 1 GHz, 1.0 pF, 1 MΩ Active Differential Probe
- ZD500 - ZD1500 - 1.5 GHz, 1.0 pF, 1 MΩ Active Differential Probe
- ZD500 - PACC-ZD001 - Y Lead Adapter, Qty 1
- ZD500 - PACC-ZD002 - Solder-In Lead, Qty 2
- ZD500 - PACC-ZD003 - Long Spring Loaded Bendable Ground, Qty 2
- ZD500 - PACC-ZD004 - Tip Saver, Qty 2
- ZD500 - PACC-ZD005 - Swivel Tip Adapter
- ZD500 - PACC-ZD006 - Small IC Adapter, Qty 2
- ZD500 - PACC-ZD009 - Micro Pogo Pin Tip, Qty 6
- ZD500 - PACC-LD003 - Right Angle Connector Short, Qty 2
- ZD500 - PACC-LD004 - Right Angle Connector Long, Qty 2
- ZD500 - PK006-4 - Micrograbber, Qty 2
- ZD500 - PACC-CL001 - Minigrabber, Qty 2
- ZD500 - PACC-CD008 - Short Spring Loaded Bendable Ground, Qty 2
- ZD500 - PCF200 - Probe Calibration Fixture, Qty 1
- ZD500 - PK111 - ZD Replacement Kit
- ZD500 - PACC-MS001 - Hands Free Probe Holder, Qty 1
| Model | ZD500 |
|---|
The Teledyne LeCroy ZD500 is a mid-range active probe with 500 MHz bandwidth, ~1 pF input capacitance, and 1 MΩ input resistance, enabling high-fidelity output with low circuit loading. It supports a ±8 V dynamic range and connects via ProBus interface for full oscilloscope control.
This probe is optimized for signal integrity validation, offering a low-mass tip head and compact form factor for use with various test setups.
Testwall can supply the used Teledyne LeCroy ZD500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy ZD500.
