Teladyne LeCroy ZS1500
Active Probe, 1.5 GHz
1.5 GHz Bandwidth
Single-Ended Active Voltage Probe Probe Type
1 MΩ Input Impedance
0.9 pF Input Capacitance
10:1 Attenuation Ratio
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Probe Type | Single-Ended Active Voltage Probe |
| Input Impedance | 1 MΩ |
| Input Capacitance | 0.9 pF |
| Attenuation Ratio | 10:1 |
| Dynamic Range | ±8V |
| Maximum Input Voltage | ±30V (DC + Peak AC) |
| Rise Time | 233 ps |
| Power Supply | Powered via ProBus interface |
| Connector Interface | ProBus compatible oscilloscope interface |
Teladyne LeCroy ZS1500 Options:
- ZS1500 - ZS1500-QUADPAK - Set of 4 ZS1500, 1.5 GHz, 0.9 pF, 1 MΩ High Impedance Active Probes
- ZS1500 - PK-ZS-024 - 2.54 mm PCB Adaptor
- ZS1500 - PK-ZS-018 - 2.54mm Square Pin Adaptor
- ZS1500 - PACC-PT003 - IC Tip
- ZS1500 - PACC-PT005 - Bent Tip
- ZS1500 - PK-ZS-010 - Channel ID Clips (Set of 4 colors)
- ZS1500 - PK-ZS-009 - Copper Tape Pad
- ZS1500 - PK-ZS-019 - Freehand Probe Holder
- ZS1500 - PK-ZS-021 - Ground Blade, Narrow
- ZS1500 - PK-ZS-015 - Ground Blade, Wide
- ZS1500 - PK-ZS-007R - Micro-Grabber Red
- ZS1500 - PK-ZS-007B - Micro-Grabber Black
- ZS1500 - PK-ZS-016 - Offset Ground
- ZS1500 - PK-ZS-020 - Pogo Ground Lead
- ZS1500 - PK-ZS-017 - Pogo Tip
- ZS1500 - PK-ZS-001 - Probe Tip – Standard
- ZS1500 - PK-ZS-025 - QFPIC Clips (set of 2)
- ZS1500 - PACC-LD004 - Right Angle Lead – Long
- ZS1500 - PACC-LD003 - Right Angle Lead – Short
- ZS1500 - PK-ZS-006 - Right Angle Socket
- ZS1500 - PK-ZS-023 - Straight Pin Lead – Long
- ZS1500 - PK-ZS-022 - Straight Pin Lead – Short
- ZS1500 - PK-ZS-014 - Y Lead Adaptor
| Model | ZS1500 |
|---|

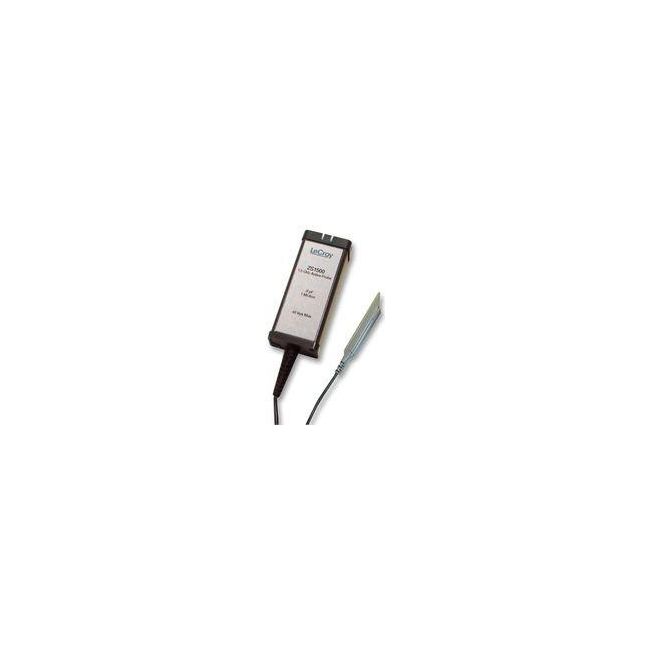

The Teledyne LeCroy ZS1500 is an enhanced active probe with a 1.5 GHz bandwidth, delivering 0.9 pF capacitance and 1 MΩ input resistance. It supports a ±8 V dynamic range and ±12 V offset, ensuring precise signal capture in dense digital environments. The ProBus interface offers seamless integration with oscilloscopes.
This probe is optimized for minimal circuit disturbance, making it ideal for intricate, high-speed circuit debugging and validation.
Testwall can supply the used Teledyne LeCroy ZS1500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy ZS1500.
