Teledyne LeCroy SDA-18000

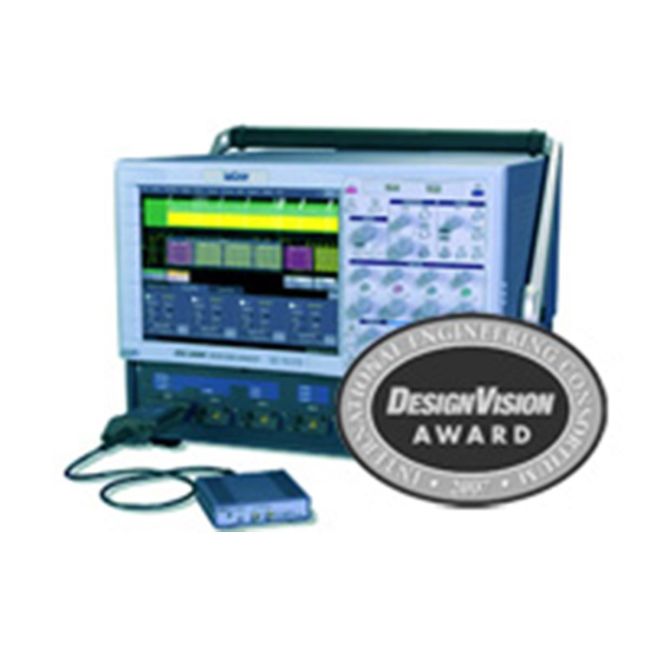

The SDA 18000 serial data analyzer is a 18 GHz Bandwidth Oscope.
18 GHz Bandwidth
40 GS/s (single channel), 20 GS/s (all channels) Sample Rate
4 Number of Channels
Up to 100 Mpts/Ch Record Length
8-bit (up to 11-bit with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 18 GHz |
| Sample Rate | 40 GS/s (single channel), 20 GS/s (all channels) |
| Number of Channels | 4 |
| Record Length | Up to 100 Mpts/Ch |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Rise Time | 19.4 ps |
| Input Impedance | 50 Ω |
| Serial Data Analysis | Integrated SDA (Serial Data Analyzer) with SDAIII CompleteLinQ software |
| Display | 15.3-inch color LCD touchscreen |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
Teledyne LeCroy SDA-18000 Options:
- SDA 18000 - SDA18-XL - Memory Option: 150 Mpts/18 GHz, 100 Mpts/11 GHz, 50 Mpts/4 Ch
- SDA 18000 - QPHY - QualiPHY Automated Test and Reporting Software Package
- SDA 18000 - QPHY-ENET - Ethernet Application Software Package
- SDA 18000 - QPHY-USB - USB Application Software Package
- SDA 18000 - SDA-HDMI - HDMI Compliance Test Software Package
- SDA 18000 - SDA-PCIE-G2 - PCI Express Development and Compliance Software for Gen1 and Gen2
- SDA 18000 - SDA-SAS - SAS Compliance Software Package
- SDA 18000 - SDA-SATA - SATA Gen1/Gen2 Solution Analysis Software Package
- SDA 18000 - SDA-UWB - UWB Test Solution Software Package
- SDA 18000 - AORM - Advanced Optical Recording Measurement Software Package
- SDA 18000 - DDM2 - Disk Drive Measurements Software Package
- SDA 18000 - DFP2 - Digital Filter Software Package
- SDA 18000 - XDEV - Advanced Customization Software Package
- SDA 18000 - XWEB - Processing Web Editor Software Package
- SDA 18000 - EYEDR - Eye Doctor (Virtual Probe and Equalizer Emulation Bundle)
- SDA 18000 - EYEDR-VP - Virtual Probe
- SDA 18000 - EYEDR-EQ - Equalizer Emulation
- SDA 18000 - MS-32-DSA - 32 Digital Oscilloscope Mixed Signal Option
- SDA 18000 - SDA-TPS - 40 GHz Trigger Prescaler
- SDA 18000 - GPIB-1 - IEEE-488 GPIB Control Interface
- SDA 18000 - DMD-1 - Dual Monitor Display
- SDA 18000 - WM-RHD - Removable Hard Drive Package
- SDA 18000 - WM-RHD-02 - Additional Removable Hard Drive
- SDA 18000 - DA18000 - 18 GHz Differential Amplifier (SDA 18000 only)
The Teledyne LeCroy SDA‑18000 delivers 18 GHz bandwidth, up to 60 GS/s sampling rate, and 150 Mpts/channel memory depth. With advanced jitter analysis and real‑time eye‑diagram capability, it provides unmatched serial data insight for high‑speed applications.
Engineered for precision measurements, it supports four‑channel acquisition, flexible sample rates from 20 GS/s to 60 GS/s, and deep memory for complex waveform analysis.
Testwall can supply the used Teledyne LeCroy SDA‑18000, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy SDA‑18000.
