Teledyne LeCroy SDA-6000A
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Sample Rate | 20 GS/s |
| Number of Channels | 4 |
| Memory Depth | 48 Mpts/Ch (up to 192 Mpts interleaved) |
| Vertical Resolution | 8 bits |
| Rise Time | 58 ps |
| Input Impedance | 50 Ω / 1 MΩ |
| Display | 12.1-inch color LCD touchscreen |
| Serial Data Analysis | Integrated serial data analysis with SDAIII CompleteLinQ software for eye diagram, jitter, and noise analysis |
| Connectivity | USB, LAN (Ethernet), GPIB (optional) |
Teledyne LeCroy SDA-6000A Options:
- SDA-6000A - SDA-XL - Memory Option: 48M/24M (2 Ch/4 Ch)
- SDA-6000A - SDA-VL - Memory Option: 32M/16M (2 Ch/4 Ch)
- SDA-6000A - ASDA-J - Advanced Serial Data Analysis Software Package (includes ISI plot, filtered jitter track, eye mask violation locator, bit error rate analysis, and custom clock recovery)
- SDA-6000A - SDA-PCIE-G2 - PCI Express Development and Compliance Software for Gen1 and Gen2
- SDA-6000A - SDA-SATA - SATA Gen1/Gen2 Solution Analysis Software Package
- SDA-6000A - ENET - Ethernet Test Software Package
- SDA-6000A - USB2 - USB 2.0 Compliance Test Software Package
- SDA-6000A - SDA-SAS - SAS I/II Solution Analysis Software Package
- SDA-6000A - SDA-HDMI - HDMI Compliance Test Software Package
- SDA-6000A - AORM - Advanced Optical Recording Measurement
- SDA-6000A - DDM2 - Disk Drive Measurement Software Package
- SDA-6000A - SDA-8B10B - 8B/10B Decoding and Analysis Software Package
- SDA-6000A - XWEB - Processing Web Editor Software Package for Functions and Parameters
- SDA-6000A - XDEV - Advanced Customization Software Package
- SDA-6000A - JTA2 - Jitter and Timing Analysis Software Package
- SDA-6000A - DFP2 - Digital Filter Software Package
- SDA-6000A - LECROYM1/ADV-1 - Advanced M1 Software Package for Jitter and Timing Measurements (1 seat)
- SDA-6000A - LECROYM1/ADV-4 - Advanced M1 Software Package for Jitter and Timing Measurements (4 seats)
- SDA-6000A - LECROYM1/BASIC - Basic M1 Software Package for Jitter and Timing Measurements
- SDA-6000A - MS-32-DSA - 32 Digital Oscilloscope Mixed Signal Option
| Model | SDA-6000A |
|---|

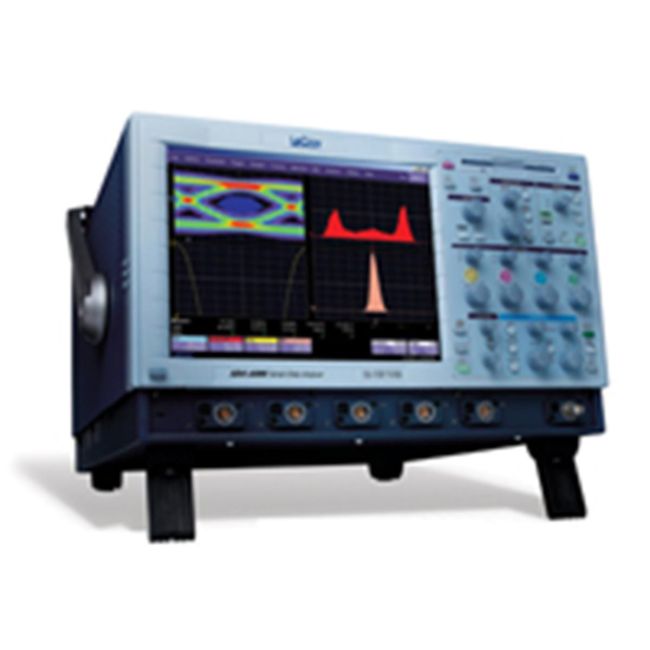

The Teledyne LeCroy SDA-6000A Serial Data Analyzer offers a 6 GHz bandwidth and a 20 GS/s sampling rate, providing precise measurement for high-speed serial data signals. Equipped with real-time eye diagram display, advanced jitter decomposition, and serial trigger and decode capabilities, it is tailored for comprehensive signal integrity validation and compliance testing.
This compact analyzer is highly effective for engineers working with high-speed designs, offering powerful jitter and timing analysis tools to ensure reliable system performance across demanding applications.
