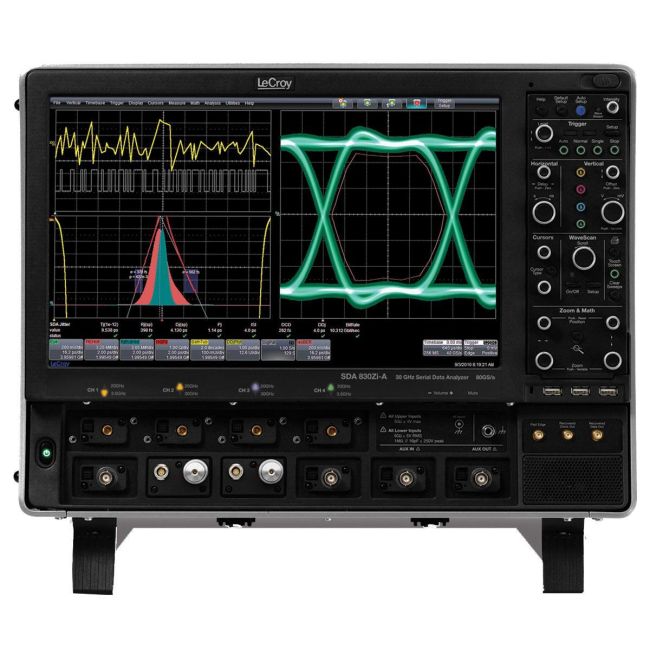

Teledyne LeCroy SDA-816ZI
4 Ch 16 GHz Serial Data Analyzer
16 GHz Bandwidth
40 GS/s Sample Rate
4 Number of Channels
256 Mpts/ch (standard), up to 2 Gpts/ch (optional) Memory Depth
8-bit (up to 11-bit with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 16 GHz |
| Sample Rate | 40 GS/s |
| Number of Channels | 4 |
| Memory Depth | 256 Mpts/ch (standard), up to 2 Gpts/ch (optional) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Input Impedance | 50 Ohm |
| Rise Time | 21.9 ps |
| Display | 15.3-inch color LCD touchscreen |
| Serial Data Analysis | Integrated Serial Data Analyzer with SDAIII CompleteLinQ software for multi-lane serial data analysis |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
Teledyne LeCroy SDA-816ZI Options:
- SDA-816ZI 4 - SDA8Zi-STD - 20 Mpts/Ch Standard Memory for SDA 8 Zi, Includes 4 GB of RAM
- SDA-816ZI 4 - SDA8Zi-S-32 - 32 Mpts/Ch Memory Option for SDA 8 Zi, Includes 4 GB RAM standard
- SDA-816ZI 4 - SDA8Zi-M-64 - 64 Mpts/Ch Memory Option for SDA 8 Zi, Includes an additional 4 GB of RAM (8 GB total)
- SDA-816ZI 4 - SDA8Zi-L-128 - 128 Mpts/Ch Memory Option for SDA 8 Zi, Includes an additional 4 GB of RAM (8 GB total)
- SDA-816ZI 4 - SDA8Zi-VL-256 - 256 Mpts/Ch Memory Option for SDA 8 Zi, Includes an additional 4 GB of RAM (8 GB total)
- SDA-816ZI 4 - WM8Zi-SDAII - SDA II Serial Data Analysis Option (Standard on SDA 8 Zi and DDA 8 Zi)
- SDA-816ZI 4 - WM8Zi-HSPT - 50 Mb/s to 3.125 Gb/s High-speed Serial Pattern Trigger Option (Standard on SDA 8 Zi)
- SDA-816ZI 4 - WM8Zi-CBL-DE-EMBED - Cable De-Embed Option (Standard on SDA 8 Zi and DDA 8 Zi)
- SDA-816ZI 4 - WM8Zi-8B10B D - 8b10b Decode Option (Standard on SDA 8 Zi and DDA 8 Zi)
- SDA-816ZI 4 - WM8Zi-SDM - Serial Data Mask Software Package (Standard on SDA 8 Zi and DDA 8 Zi)
- SDA-816ZI 4 - WM8Zi-JTA2 - Jitter and Timing Analysis Software Package (Standard on SDA 8 Zi and DDA 8 Zi)
- SDA-816ZI 4 - WM8Zi-EYEDRII - Eye Doctor II Advanced Signal Integrity Tools
- SDA-816ZI 4 - WM8Zi-I2Cbus TD - I2C Bus Trigger and Decode Option
- SDA-816ZI 4 - WM8Zi-SPIbus TD - SPI Bus Trigger and Decode Option
- SDA-816ZI 4 - WM8Zi-LINbus TD - LIN Trigger and Decode Option
- SDA-816ZI 4 - WM8Zi-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- SDA-816ZI 4 - WM8Zi-FlexRayBus TD - FlexRay Trigger and Decode Option
- SDA-816ZI 4 - WM8Zi-FlexRayBus TDP - FlexRay Bus Trigger, Decode, and Physical Layer Test Option
- SDA-816ZI 4 - WM8Zi-CANbus TDM - CANbus TDM Trigger, Decode and Measure/Graph Option
- SDA-816ZI 4 - WM8Zi-CANbus TD - CANbus TD Trigger and Decode Option
- SDA-816ZI 4 - QPHY-ENET - Ethernet Application Software
- SDA-816ZI 4 - QPHY-USB - USB Application Software
- SDA-816ZI 4 - QPHY-PCIe - PCIe Gen1 Compliance and Development Software Package
- SDA-816ZI 4 - QPHY-SATA - QualiPHY Enabled SATA Software Option
- SDA-816ZI 4 - QPHY-UWB - WiMedia UWB Transmitter Measurement Software Option
- SDA-816ZI 4 - QPHY-DisplayPort - QualiPHY Enabled DisplayPort Software Option
- SDA-816ZI 4 - QPHY-HDMI - QualiPHY Enabled HDMI Software Option
- SDA-816ZI 4 - LSIB-1 - High-speed PCIe Gen1 x4 Digitizer Output
- SDA-816ZI 4 - MS-500 - 500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI 4 - MS-500-36 - 250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI 4 - MS-250 - 250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI 4 - WM8Zi-XDEV - Advanced Customization Software Package
- SDA-816ZI 4 - WM8Zi-SPECTRUM - Spectrum Analyzer and Advanced FFT Option
- SDA-816ZI 4 - WM8Zi-DFP2 - Digital Filter Software Package
- SDA-816ZI 4 - WM8Zi-DMOD - Demodulation Software Package
- SDA-816ZI 4 - WM8Zi-ET-PMT - Electrical Telecom Mask Test Software Package
- SDA-816ZI 4 - WM8Zi-EMC - EMC Pulse Parameter Software Package
- SDA-816ZI 4 - WM8Zi-PMA2 - Power Measure Analysis Software Package
- SDA-816ZI 4 - WM8Zi-4-UPG-8GBRAM - Upgrade from 4 GB to 8 GB CPU RAM
- SDA-816ZI 4 - WM8Zi-200GB-HD - Upgrade from Standard Size Hard Drive to 200 GB Hard Drive
- SDA-816ZI 4 - GPIB-2 - GPIB Option for LeCroy Oscilloscope, Half-height Card
- SDA-816ZI 4 - Zi-EXTDISP-15 - Top-mounted, Fully Integrated 15.3" WXGA with Touch Screen Display, Including all Cabling and Software
- SDA-816ZI 4 - WM8Zi-RACKMOUNT - Rackmount Accessory for Converting a WM8Zi Series Oscilloscope to an 8U Rack-mounted Package
| Model | SDA-816ZI 4 |
|---|
The Teledyne LeCroy SDA-816Zi is designed for engineers working with 16 GHz serial standards, featuring 16 GHz analog bandwidth and 40 GS/s sample rate per channel. It delivers precise real-time jitter and noise separation with compatibility across a broad range of probes, ensuring accurate high-speed compliance testing and advanced signal integrity analysis.
Ideal for protocol-specific measurements, the SDA-816Zi provides fast access to compliance data and supports verification of signal quality across demanding applications.
Testwall can supply the used Teledyne LeCroy SDA-816Zi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy SDA-816Zi.
