Teseq (Schaffner) NSG 3060
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz – 30 MHz |
| Output Voltage | Up to 10 V open circuit |
| Impedance | 50 Ω |
| Modulation Types | AM, FM, Pulse, and user-defined waveforms |
| Conducted Immunity Standards | IEC 61000-4-6, ISO 11452-7 |
| CDN (Coupling/Decoupling Network) Compatibility | Compatible with Teseq/Schaffner CDN series for line coupling |
| Control Interface | USB, GPIB, and RS-232 remote control interfaces |
| Display | Built-in LCD display for parameter monitoring and control |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature | 0 °C to 40 °C |
Teseq (Schaffner) NSG 3060 Options:
- NSG 3060 - CDN 3063-C32 - Combined surge & burst coupling network for 480 VAC Ph-Ph, 32 A
- NSG 3060 - CDN 3063-C63 - Combined surge & burst coupling network for 480 VAC Ph-Ph, 63 A
- NSG 3060 - CDN 8014/8015 - Capacitive coupling clamp for burst
- NSG 3060 - CDN 163 - Burst coupling network 100 A per phase (coupling all to ref ground)
- NSG 3060 - CDN 117/118 - Coupling networks for signal-/data lines (surge)
- NSG 3060 - CAS 3025 - Burst/EFT verification set
- NSG 3060 - MD 200A - Voltage differential probe 7 kV
- NSG 3060 - MD 300 - Current probe 5 kA
- NSG 3060 - INA 6501 - Manual step transformer, 16 AAC, 0/40/70/80% (IEC/EN 61000-4-11)
- NSG 3060 - INA 6502 - Automatic step transformer, 16 AAC, 0/40/70/80% (IEC/EN 61000-4-11)
- NSG 3060 - VAR 6501 - Automatic variable transformer, 7.5 A (IEC/EN 61000-4-11)
- NSG 3060 - VAR 6502 - Automatic variable transformer, 2 x 16 A (IEC/EN 61000-4-11)
- NSG 3060 - VAR 6503 - Manual variable transformer, 7.5 A (IEC/EN 61000-4-11)
- NSG 3060 - MFO 6501 - Manual magnetic field option -4-8 (IEC/EN 61000-4-8/-4-9)
- NSG 3060 - MFO 6502 - Automatic magnetic field option -4-8 (IEC/EN 61000-4-8/-4-9)
- NSG 3060 - INA 701 - Magnetic field coil 1 x 1 m; with MFO max. 3.6 A/m -4-8; Surge max. 1200 A/m -4-9
- NSG 3060 - INA 702 - Magnetic field coil 1 x 1 m; with MFO max. 40 A/m -4-8; Surge max. 1200 A/m -4-9
- NSG 3060 - INA 753 - Pulse shape adapter
| Model | NSG 3060 |
|---|

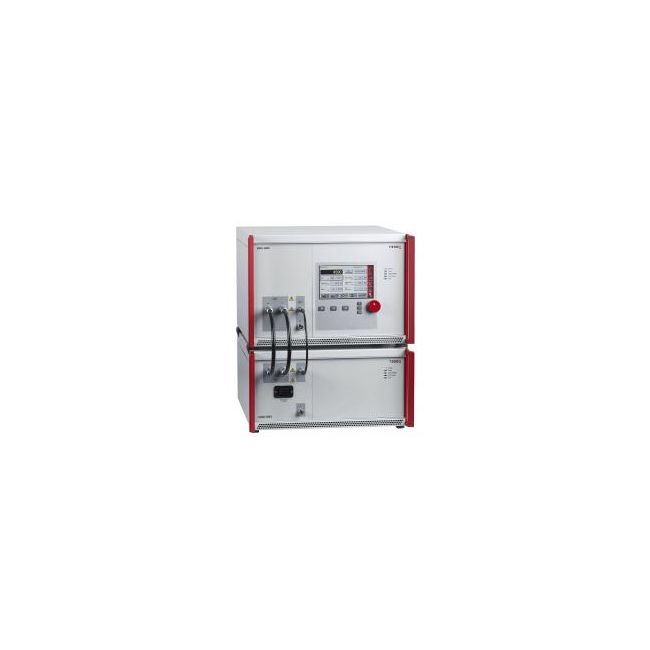

The Teseq Schaffner NSG-3060 is a modular, expandable immunity test system capable of generating surge voltages up to 6.6 kV for overtesting. It integrates IEC and ANSI coupling methods and features a 7″ color touchscreen for user-friendly control. Direct Test Access (DTA) enables rapid access to standard test parameters, while high-accuracy switching technology ensures compliance with ANSI coupling criteria.
Parameters can be adjusted during active testing, and a wide range of optional accessories is available to adapt to diverse EMC testing environments.
Testwall can supply the used Teseq Schaffner NSG-3060, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teseq Schaffner NSG-3060.
