Test Equity 101H-B

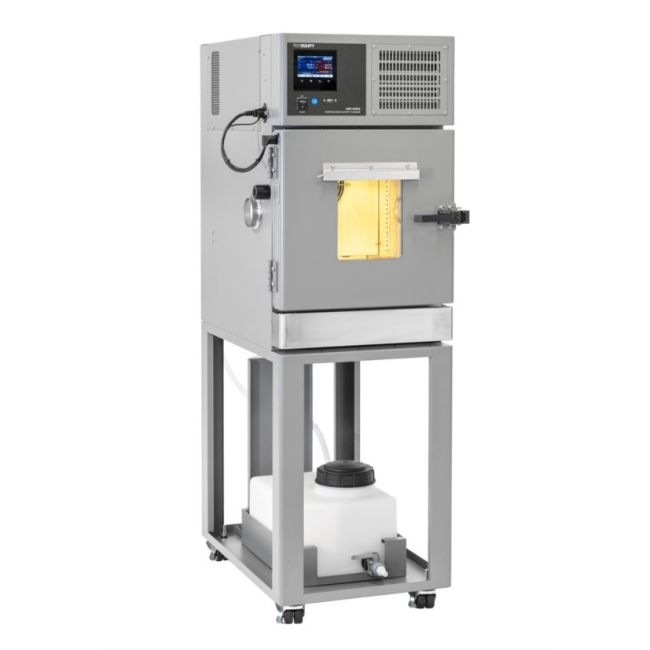

RENT TestEquity 101H-B Temperature Humidty Chamber

The Test Equity 101H-B includes the following features and specifications:

• 1.1 Cu Ft Workspace (13.8" W x 11.8" H x 11.8" D)
• Temperature -20 °C to +130 °C
• Humidity 10% to 95% RH.
• Built-In Water Recirculation System - nothing extra to buy, no plumbing needed
• F4T Touch Screen Controller
• Compact Benchtop & Floor Standing Versions (convertible)
• Viewing Window & LED Lighting
• 3" Access Ports on Left & Right Side
• Single-Stage Refrigeration
• 120V Input - Plugs Into Any 15 Amp Outlet

Additional features of the TestEquity 101H-B include:

Built-In Water Recirculation System - TestEquity Exclusive!
Model 101H features a built-in water reservoir and recirculation/filter system. There is no need for any external bottles, plumbing or drain lines! Nothing extra to buy!

Mass-Transfer Vapor Generator - TestEquity Exclusive! (Patent Pending)
Better humidity stability throughout the entire operating range compared to steam generators. Accomplished without an exposed water bath.

Accurate Humidity Measurement
A fast responding Vaisala capacitive-type sensor eliminates the need for unreliable wet-wicks.

Platinum RTD Temperature Sensor
For increased temperature accuracy compared to thermocouples.

Low-Noise Operation
The chamber's refrigeration system generates a low level of audible noise and vibration. You'll be able to work close to the chamber with minimum discomfort and distraction.

120 Volt Input
The Model 101H draws only 10 Amps maximum at 120 Volts. You can plug it into any standard wall receptacle, with plenty of power to spare for other equipment.

Heated Viewing Widow
Eliminates fog and condensation under high humidity conditions without a manual wiper.

LED Lighting
Mounted on outside of door facing into the window. Long lasting, not exposed to temperature extremes.

Two 3" Access Ports
Two 3" (2.83" inside diameter) access ports are included. Lets you attach wires and sensors to your test sample through both the left and right side of the chamber.

Adjustable Shelf
A heavy-duty stainless steel wire shelf ensures proper airflow around your test sample for uniform temperature distribution.

Compact Benchtop & Floor Standing Versions (convertible)
Model 101H-B fits easily on your workbench. For more portable use we offer a floor-standing version with casters, Model 101H-F. You can convert the benchtop version to a floor-standing version at any time by purchasing the caster base.

New HFO Refrigerant
Low GWP (Global Warming Potential) and no phase-out date. Non-toxic, non-explosive.

F4T Touch Screen Temperature/Humidity Controller
The F4T is our next-generation controller. Featuring a touch-screen interface, it's exceptionally easy and intuitive to use. Includes RS-232 and Ethernet interfaces. GPIB is available as an option.
