Test Equity 107
| Attribute | Value |
|---|---|
| Temperature Range | -73°C to 177°C (-100°F to 350°F) |
| Interior Volume | 1.1 cubic feet (31 liters) |
| Temperature Stability | ±0.5°C |
| Temperature Uniformity | ±1.0°C |
| Cooling System | Mechanical refrigeration with cascade cooling |
| Heating System | Electric resistance heater |
| Controller Type | Programmable PID digital controller |
| Power Requirements | 120V, 60Hz, Single Phase |
| External Dimensions | 29"H x 22"W x 26"D (approximate) |
| Certifications | CE, UL Listed |
Test Equity 107 Options:
- 107 - 107-EX - Export Model: 230 V nominal (209 to 253 VAC), 50 Hz, 1 PH
- 107 - F4T - Watlow F4T Touch Screen Controller with RS-232, Ethernet interface, 4.3" color graphic touch screen (optional)
| Model | 107 |
|---|
TEST EQUITY 107 - RENT

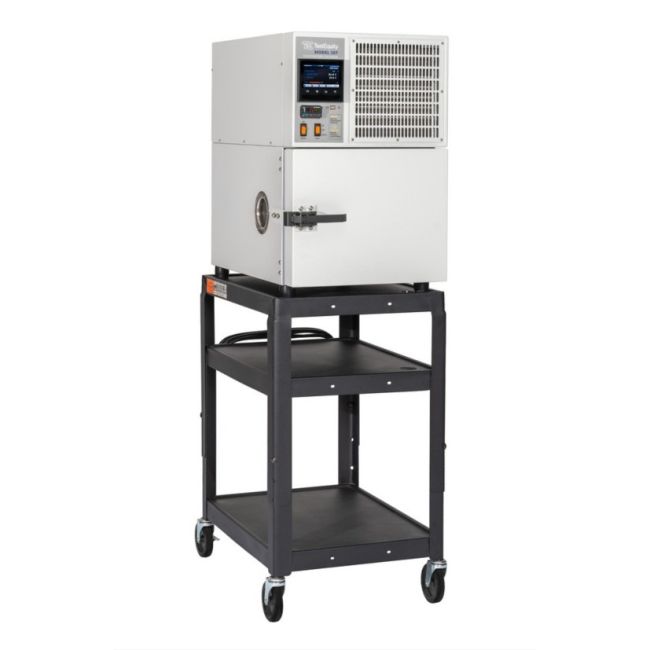

The Test Equity 107 Temperature Chamber is small enough to fit on your bench with lots of room to spare. It is smaller and uses 33% less power than the other similiar benchtop chambers. In addition, the TestEquity 107 Chamber fits in a 19" rack. Low audible noise makes the Model 107 ideal for use in confined workspaces. Requiring only 10 Amps at 120 V, you can plug it into any outlet. There is no need for a dedicated power line. The chamber door is reversible, to open from the left or right side. Two 3 " ports let you attach wires to the test sample through the left and right sides. Cools down to -42 °C without LN2 or CO2.
The Test Equity 107 Temperature Chamber features a number of improvements over the older 105A TE Chamber, including:
Improved Airflow - The conditioning plenum is improved to accommodate a larger fan blade and a more ideal airflow pattern. This results in substantially improved temperature uniformity under real-world loading conditions.
Cools Down to -42 °C - Improved airflow and a larger evaporator (cooling coil) allows the Model 107 to get 2 °C colder. This allows you to compensate for offsets that can occur with an energized load at -40 °C.
Full Bi-Directional Heat/Cool Control - Provides more responsive temperature control, particularly at moderate temperatures.
Choice of Manual or Programmed On/Off Mode - Allows the chamber to be turned off completely at the end of a stored profile or via computer interface.
Deeper Interior - The inside is 3.25" deeper to accommodate larger test samples.
Condensate Drain - The chamber floor has a drain to permit removal of condensate from the evaporator that can occur when cycling between low to high temperatures.
Specifications of the Test Equity 107 include:
- 0.7 Cu Ft Workspace, 12W x 9H x 11.25D (20 liters)
- -42 °C to +130 °C Temperature Range
- Your choice of the NEW F4T Touch Screen Controller or the Original F4 Controller
- High/Low Limit Controller
- 120V Input - Plugs Into Any Outlet
- 3" Port on Left and Right Side
- Compact Size for Benchtop or Rack Mount Use
- Low Audible Noise
- Non-CFC Single-Stage Refrigeration
- No LN2 or CO2 Required
- Reversible Door
