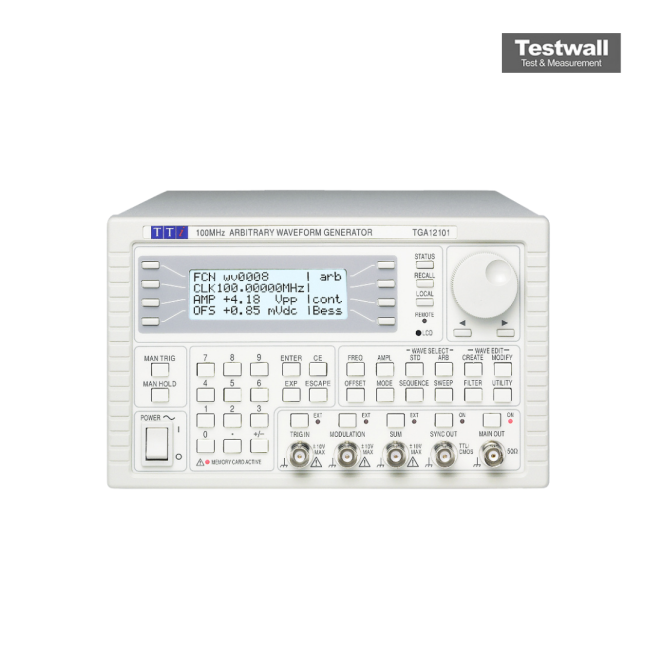

TTI Thurlby Thandar Instruments TGA12101
1 Ch 100MSa/s Arbitrary Waveform Generator
1 µHz to 10 MHz Frequency Range
Sine, Square, Triangle, Ramp, Pulse, Noise, Arbitrary, and more Waveform Types
128K samples per channel Arbitrary Waveform Memory Depth
14-bit DAC resolution Vertical Resolution
1 mVpp to 20 Vpp (into open circuit), 1 mVpp to 10 Vpp (into 50 Ω) Output Amplitude
| Attribute | Value |
|---|---|
| Frequency Range | 1 µHz to 10 MHz |
| Waveform Types | Sine, Square, Triangle, Ramp, Pulse, Noise, Arbitrary, and more |
| Arbitrary Waveform Memory Depth | 128K samples per channel |
| Vertical Resolution | 14-bit DAC resolution |
| Output Amplitude | 1 mVpp to 20 Vpp (into open circuit), 1 mVpp to 10 Vpp (into 50 Ω) |
| Output Impedance | 50 Ω |
| Modulation Modes | AM, FM, PM, FSK, PWM, Sweep, and Burst |
| Display | Large graphical LCD display |
| Interfaces | USB Device, USB Host, LAN (LXI compliant) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Model | Thandar |
|---|
The TTI -Thurlby Thandar Instruments TGA12101 is a 1M points/ch (8 to 1048576 points Waveform length) - 1 Ch , 100.00 MSa/sec Arbitrary Waveform Generator
