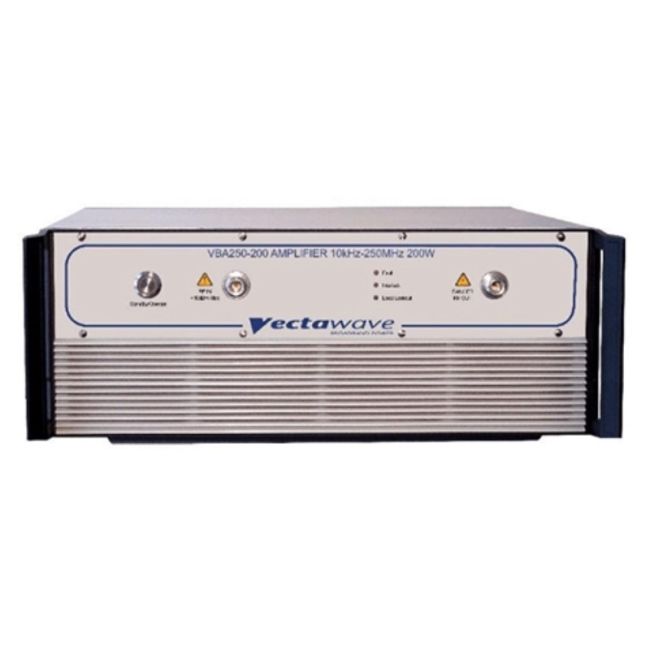

Vectawave VBA250-200
High Power Amplifier, 10kHz - 250MHz, 200W
250 MHz – 200 W Frequency Range
200 W CW minimum Output Power
10 kHz to 250 MHz Frequency Coverage
Minimum 50 dB small signal gain Gain
0 dBm (1 mW) nominal Input Power for Rated Output
| Attribute | Value |
|---|---|
| Frequency Range | 250 MHz – 200 W |
| Output Power | 200 W CW minimum |
| Frequency Coverage | 10 kHz to 250 MHz |
| Gain | Minimum 50 dB small signal gain |
| Input Power for Rated Output | 0 dBm (1 mW) nominal |
| Harmonic Distortion | -20 dBc or better at rated output |
| Input VSWR | 2:1 maximum |
| Output VSWR Tolerance | Capable of withstanding full output power into any load mismatch |
| Power Supply | Single phase 100–240 VAC, 50/60 Hz |
| Cooling | Forced air cooled |
Vectawave VBA250-200 Options:
- VBA250-200 - OPT-USB/GPIB - USB/GPIB Interface (Optional)
- VBA250-200 - OPT-RACK-FRONT - Rack mount with Front panel connectors
- VBA250-200 - OPT-RACK-REAR - Rack mount with Rear panel connectors
- VBA250-200 - OPT-BENCH - Bench mount with Front panel connectors
| Model | VBA250-200 |
|---|
VECTAWAVE VBA250-200 High Power Amplifier
The Vectawave VBA250-200 High Power Amplifier spaning frequency of 10kHz to 250MHz, is tailored for EMC applications. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression. Operating in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. These attributes make the Vectawave VBA250-200 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA250-200 High Power Amplifier Include:
| Frequency Range | 10 kHz to 250 MHz |
| Rated Output Power | 250 W Min (10kHz - 80MHz) / 200 W Min (80 - 250MHz) |
| Output Power Harmonics | Better than -20dBc @ 150W |
| Output Impedence | 50 Ohms |
