Vitrek HVL-150
| Attribute | Value |
|---|---|
| Voltage Output Range | Up to 150 kV DC |
| Output Current | Up to 10 mA |
| Voltage Measurement Accuracy | ±0.5% of reading |
| Current Measurement Accuracy | ±0.5% of reading |
| Output Voltage Resolution | 10 V |
| Output Current Resolution | 1 µA |
| Interface / Connectivity | USB, RS-232, and optional IEEE-488 (GPIB) |
| Power Requirements | 90–264 VAC, 47–63 Hz |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Form Factor / Dimensions | Rack-mountable, 2U chassis |
Vitrek HVL-150 Options:
- HVL-150 - BP-47 - Internal 11 Hour Battery Pack
- HVL-150 - GP-47 - GPIB (IEEE-488) Interface
- HVL-150 - HC-47 - Hard Carrying Case
- HVL-150 - RM-47 - Rack Mount Kit
- HVL-150 - HVP-35 - 35KV Handheld Probe
- HVL-150 - HVL-35 - 35KV Bench Top Lab Probe
- HVL-150 - HVL-70 - 70KV Bench Top Lab Probe
- HVL-150 - HVL-100 - 100KV Bench Top Lab Probe
- HVL-150 - HVL-35G - 35KV High Impedance Lab Probe
- HVL-150 - HVL-70G - 70KV High Impedance Lab Probe
- HVL-150 - HVL-100G - 100KV High Impedance Lab Probe
- HVL-150 - TL-47 - Replacement Test Lead Kit
| Model | HVL-150 |
|---|

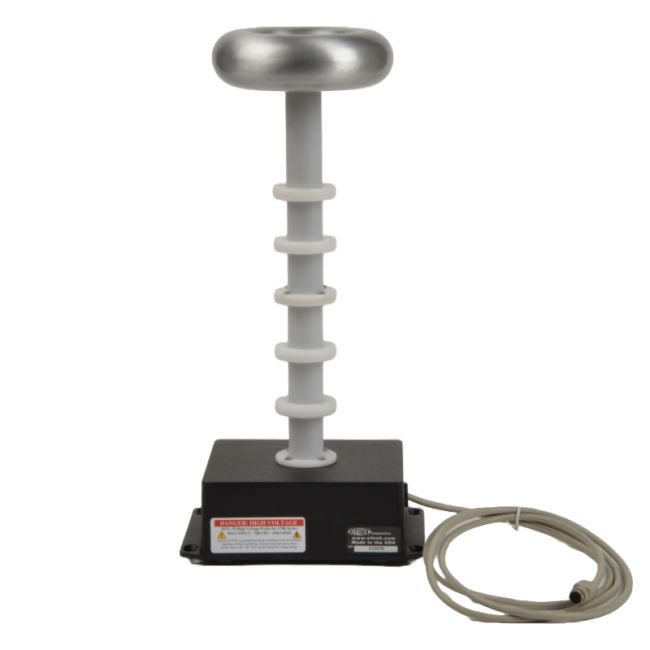

Vitrek HVL-150 Lab Precision Smart Probe
The Vitrek HVL-150 Lab Precision Smart Probe is a bench top high voltage probe which connects to the 4700 probe input to extend the measurement range up to 140KV. Equipped with high-resolution measurement capabilities and superior accuracy, this instrument delivers reliable results, essential for critical testing and quality assurance processes. Featuring an intuitive interface and user-friendly controls, the HVL-150 simplifies operation, allowing users to navigate functions effortlessly and perform tests with ease.
Vitrek HVL-150 Lab Precision Smart Probe can store their own calibration data which is down loaded when they are plugged in to the 4700 €“ this results in high accuracy, calibrated readings and allows it to be used with any 4700 High Voltage Meter. Vitrek HVL-150's proprietary, ultra-low TC attenuator design minimizes self-heating €“ while its lower capacitance construction technology enhances AC performance. The Vitrek HVL-150 Lab Precision Smart Probe is equipped with a safety interlock system to prevent accidental exposure to high voltage during testing, ensuring operator safety and minimizing risks in hazardous environments.
Specifications for the Vitrek HVL-150 Lab Precision Smart Probe Include:
| Maximum Voltage Measurement | 140KVDC, 100KVACrms |
| DC Voltage Measurement Accuracy | 0.08% of reading + 0.7V |
| AC Voltage Measurement Accuracy | 0.5% of reading + 1V |
| High Voltage Self Heating Effect | 0.2 ppm of reading KV2 |
