Keysight (Agilent) E5281B
| Attribute | Value |
|---|---|
| Voltage Force Range | ±100 V |
| Current Force Range | ±100 mA |
| Voltage Measure Resolution | 2 µV |
| Current Measure Resolution | 10 fA |
| Number of Channels | 1 channel per module (up to 8 modules in E5270B mainframe) |
| Module Type | High Power Source/Monitor Unit (HPSMU) |
| Maximum Power Output | 2 W per channel |
| Current Measurement Accuracy | 0.1% + 1 pA (typical) |
| Compatible Mainframe | Keysight E5270B Precision IV Analyzer |
| Measurement Functions | IV characteristics, spot measurement, sweep measurement, pulsed measurement |
Keysight (Agilent) E5281B Options:
- E5270B - 015 - 1.5m cable length
- E5270B - 030 - 3.0m cable length
- E5270B - A01 - Four MPSMU package
- E5270B - A02 - Two MPSMU and two HRSMU package
- E5270B - A03 - Four HRSMU package
- E5270B - A10 - Add one HPSMU
- E5270B - A11 - Add one MPSMU
- E5270B - A17 - Add one HRSMU
- E5270B - A28 - Add atto sense and switch unit (ASU)
- E5270BU - 080 - Precision High Power Source/Monitor Unit Module (E5280B)/ No cable included
- E5270BU - 081 - Precision Medium Power Source/Monitor Unit Module (E5281B)/ No cable included
- E5270BU - 087 - High Resolution Source/Monitor Unit Module (E5287A)/ No cable included
- E5270BU - 88A - Atto Sense And Switch Unit (E5288A ASU) with 1.5 m Triax and Dsub Cable
- E5270BU - 88B - Atto Sense And Switch Unit (E5288A ASU) with 3 m Triax and Dsub Cable
- E5270BU - SWS - EasyEXPERT Extension support
| Model | E5281B |
|---|

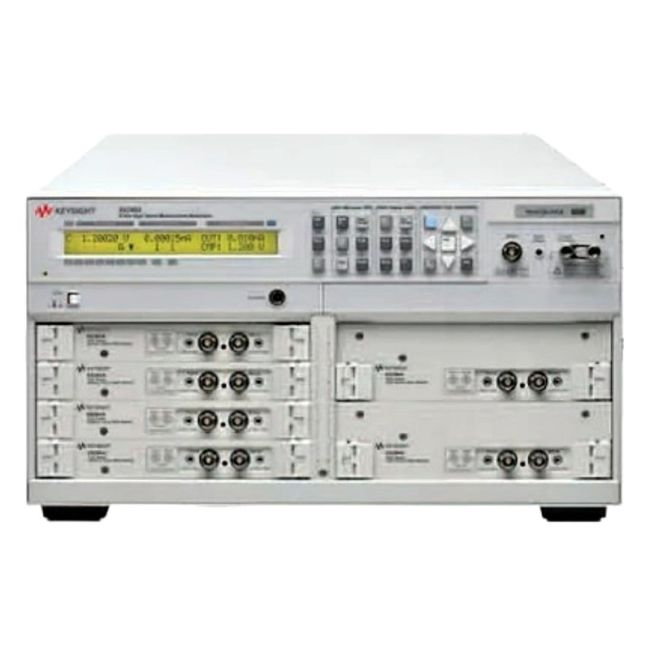

The Keysight (Agilent) E5281B High Power Source/Measurement Unit (HPSMU) integrates with an 8-slot Parametric Measurement System Mainframe, delivering a voltage range of -100 V to 100 V and a current range of -100 mA to 100 mA for advanced electrical characterization tasks.
Ideal for precision parametric measurements, the E5281B ensures consistent high-performance in both sourcing and measurement operations, essential for semiconductor and material testing.
Testwall can supply the used Keysight (Agilent) E5281B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5281B.
