Viavi (Aeroflex IFR)
Wandel & Goltermann PKN1
1 KHz - 10 MHz Line and Office Simulator
PCM Network Analyzer / Jitter Measuring Set Device Type
1 Hz to 100 kHz Frequency Range
2 Mbit/s (E1), 8 Mbit/s (E2), 34 Mbit/s (E3), 140 Mbit/s (E4) PDH interfaces Interface Compatibility
Measures jitter amplitude and frequency on PDH digital transmission systems Jitter Measurement
75 Ohm unbalanced / 120 Ohm balanced Impedance
| Attribute | Value |
|---|---|
| Device Type | PCM Network Analyzer / Jitter Measuring Set |
| Frequency Range | 1 Hz to 100 kHz |
| Interface Compatibility | 2 Mbit/s (E1), 8 Mbit/s (E2), 34 Mbit/s (E3), 140 Mbit/s (E4) PDH interfaces |
| Jitter Measurement | Measures jitter amplitude and frequency on PDH digital transmission systems |
| Impedance | 75 Ohm unbalanced / 120 Ohm balanced |
| Display | Built-in LCD display for measurement readout |
| Compliance Standards | ITU-T G.823, G.742, G.743, G.744, G.745 jitter tolerance and transfer specifications |
| Power Supply | AC mains powered, 100–240 V AC, 50/60 Hz |
| Operating Temperature | 0°C to +45°C (32°F to 113°F) |
| Form Factor | Portable benchtop unit |
| Model | PKN1 |
|---|

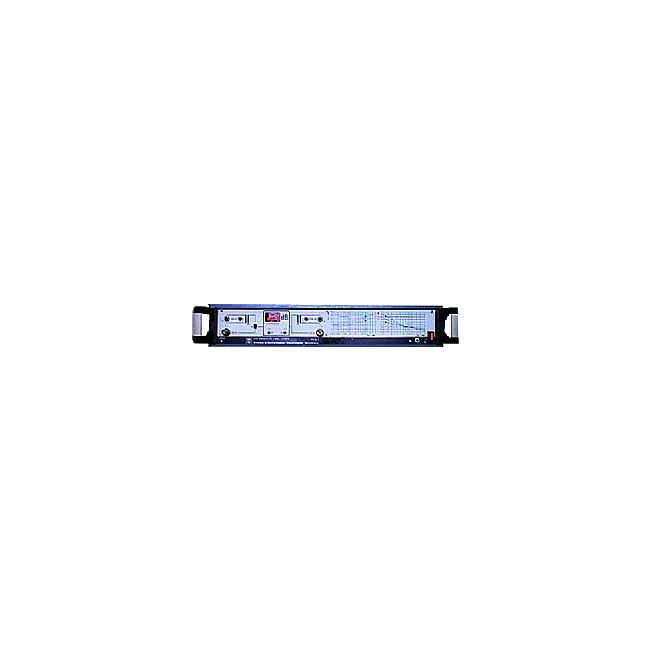

The Wandel & Goltermann PKN1 is a precision instrument, likely functioning as a reference noise generator or calibration tone source.
It supports signal-integrity verification and equipment calibration tasks.
Ideal for engineers requiring consistent noise generation in system diagnostics or calibration procedures, the PKN1 enhances measurement accuracy in various RF and electronic testing environments.
Testwall can supply the used Wandel & Goltermann PKN1, fully tested.
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality.
Please contact us directly if you need calibration or repair of the Wandel & Goltermann PKN1.
