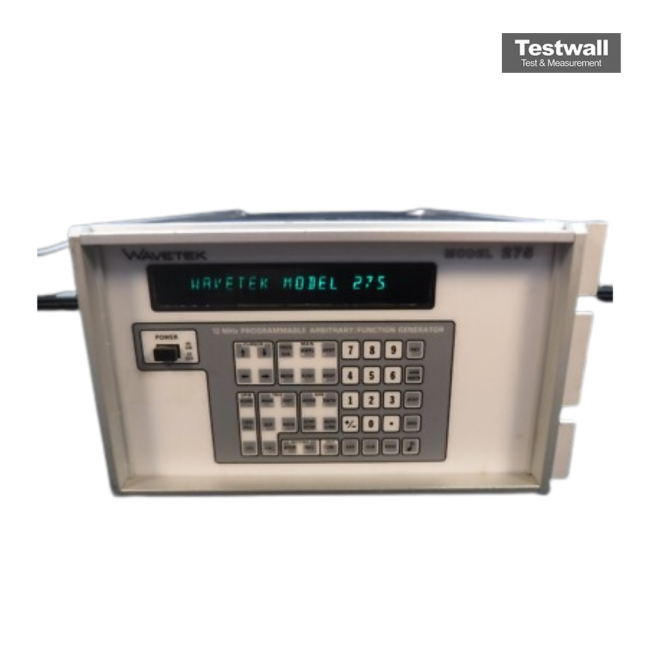

Wavetek 275
12MHz Arbitrary Waveform Generator
0.1 Hz to 4 MHz Frequency Range
Sine, Triangle, Square, Ramp, Pulse, DC Waveform Types
20 mVpp to 20 Vpp (open circuit) Output Amplitude
50 Ohms Output Impedance
±2% of full scale Frequency Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 0.1 Hz to 4 MHz |
| Waveform Types | Sine, Triangle, Square, Ramp, Pulse, DC |
| Output Amplitude | 20 mVpp to 20 Vpp (open circuit) |
| Output Impedance | 50 Ohms |
| Frequency Accuracy | ±2% of full scale |
| DC Offset Range | ±10 V into open circuit |
| Sweep Modes | Linear and Logarithmic sweep, VCF input |
| Modulation | AM and FM modulation capability |
| Display | 4-digit LED frequency display |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Model | 275 |
|---|
The Wavetek 275 Arbitrary / Function Generator is a light-weight, programmable, half-rack instrument for bench or ATE use. The 275 can generate precise sine, triangle, square and user-defined arbitrary waveforms from 0.01 to 10 Vp-p.
