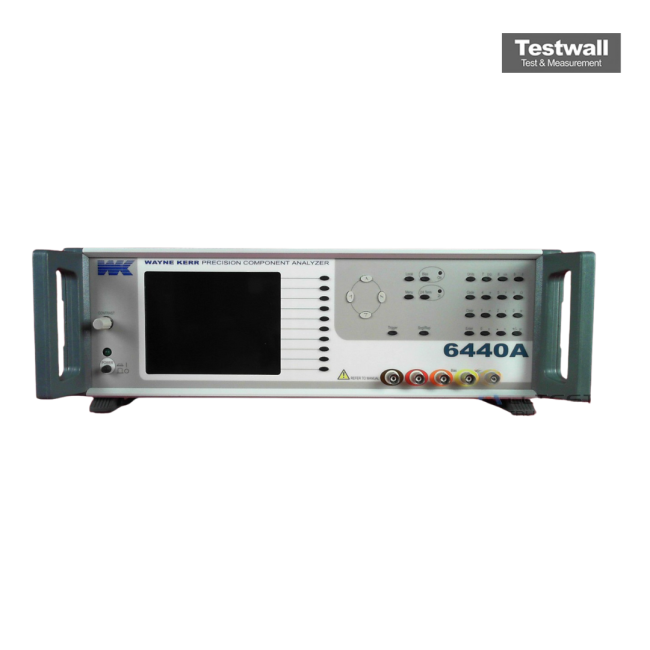

Wayne Kerr 6440A
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 3 MHz |
| Measurement Parameters | L, C, R, Z, D, Q, θ, ESR, G, B, X, Rp, Rs |
| Basic Accuracy | 0.1% |
| Test Signal Level (Voltage) | 5 mV to 1 V RMS |
| DC Bias Voltage | 0 to ±40 V internal DC bias |
| Display | Large LCD with simultaneous primary and secondary parameter display |
| Interface | IEEE-488 (GPIB) and RS-232 |
| Measurement Speed | Fast, Medium, and Slow measurement modes available |
| Equivalent Circuit Modes | Series and Parallel |
| Power Supply | 90 to 264 V AC, 47 to 63 Hz |
| Model | 6440A |
|---|
The Wayne Kerr 6440A 20Hz-3MHz Precision Component Analyser offers a frequency range from 20Hz to 3MHz with a basic measurement accuracy of 0.02%. It supports 12 versatile measurement functions and performs up to 20 measurements per second. Equipped with a GPIB interface, it ensures reliable connectivity and precision for demanding component analysis tasks.
Designed for precision testing of components, this analyser is ideal for applications requiring high accuracy across a wide frequency range. Its measurement speed and versatility make it suitable for research, production, and quality control environments.
Testwall can supply the used Wayne Kerr 6440A 20Hz-3MHz Precision Component Analyser, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wayne Kerr 6440A 20Hz-3MHz Precision Component Analyser.
