Wayne Kerr 7010
| Attribute | Value |
|---|---|
| Measurement Function | LCR Meter / Impedance Analyzer |
| Frequency Range | 20 Hz to 100 kHz |
| Basic Accuracy | 0.1% |
| Test Signal Level | 0.1 V to 1.0 V RMS |
| Measurement Parameters | Z, Y, L, C, R, G, B, X, D, Q, θ, DCR |
| Display | Dual parameter simultaneous display |
| Interface | IEEE-488 (GPIB) / RS-232 |
| Measurement Speed | Fast, Medium, and Slow measurement modes |
| DC Bias | Internal DC bias voltage capability |
| Power Supply | 90–264 V AC, 47–63 Hz |
| Model | 7010 |
|---|

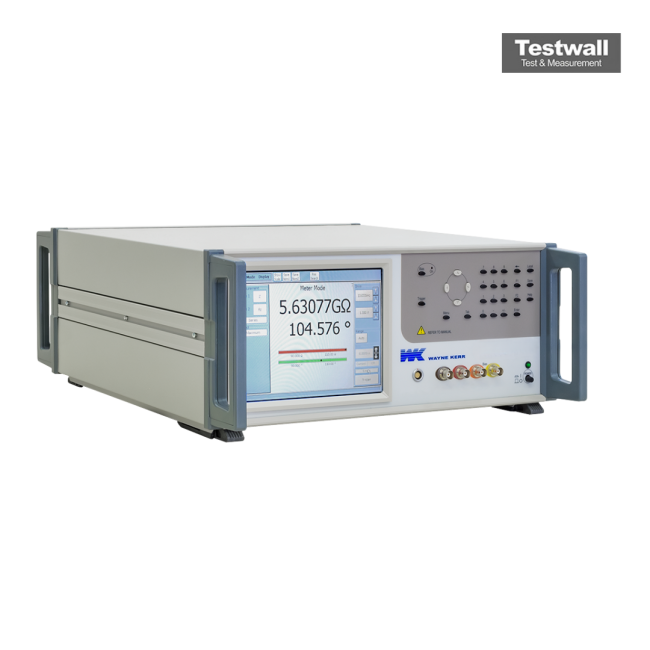

The Wayne Kerr 7010 is a modular LCR meter system designed for adaptability and high performance. Its architecture supports a wide range of LCR measurements with excellent accuracy, while the modular design allows configurations tailored to laboratory or production requirements. Clear controls and robust construction ensure long-term reliability in demanding environments.
This system is ideal for diverse test setups, offering expandable options for multiple applications. Its intuitive interface simplifies operation, making it efficient for engineers and technicians alike.
Testwall can supply the used Wayne Kerr 7010, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wayne Kerr 7010.
