Wayne Kerr 6520A
| Attribute | Value |
|---|---|
| Measurement Parameters | Inductance (L), Capacitance (C), Resistance (R), Impedance (Z), Phase Angle (θ), Dissipation Factor (D), Quality Factor (Q) |
| Test Frequency Range | 20 Hz to 500 kHz |
| Basic Measurement Accuracy | 0.1% |
| Test Signal Level (Voltage) | 5 mV to 1 V RMS |
| Display | Dual parameter LCD display with simultaneous primary and secondary parameter readout |
| DC Bias | Internal DC bias up to 2 V; supports external DC bias |
| Measurement Speed | Fast, Medium, and Slow measurement modes available |
| Interface / Connectivity | IEEE-488 (GPIB) and RS-232 interfaces for remote control and automation |
| Component Handler Interface | Built-in handler interface for automated component sorting and production testing |
| Power Requirements | 90–264 V AC, 47–63 Hz, suitable for worldwide operation |
| Model | 6520A |
|---|

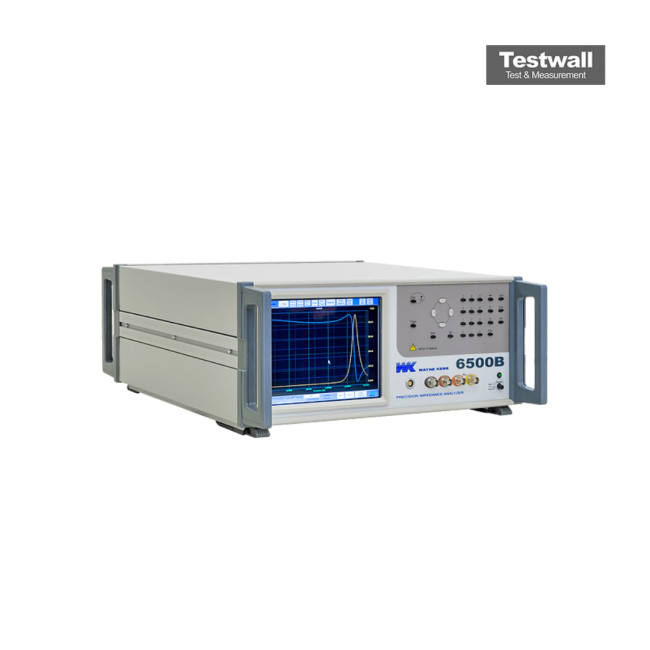

The Wayne Kerr 6520A Precision Impedance Analyser 1KHz-15MHz offers highly accurate impedance measurements across a frequency range of 1kHz to 15MHz. It provides precise inductance, capacitance, and resistance readings, supporting a wide range of test parameters and configurations. Its advanced circuitry ensures low measurement uncertainty for demanding laboratory and production applications.
Ideal for characterising electronic components and materials, this analyser delivers stable performance and high repeatability. It is suited for research, manufacturing, and quality control environments where precision is critical.
Testwall can supply the used Wayne Kerr 6520A Precision Impedance Analyser 1KHz-15MHz, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wayne Kerr 6520A Precision Impedance Analyser 1KHz-15MHz.
