Xantrex XDC30-400
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 30 V |
| Output Current | 0 - 400 A |
| Output Power | 12,000 W (12 kW) |
| Input Voltage | 200/208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Voltage Regulation | 0.05% of full scale |
| Current Regulation | 0.1% of full scale |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Interface / Control | Analog Programming, RS-232 / GPIB (IEEE-488) Optional |
Xantrex XDC30-400 Options:
- XDC30-400 - GPIB - GPIB interface card (488.2 with SCPI)
- XDC30-400 - CANbus - CANbus communications link
- XDC30-400 - HV - High voltage input: 3Ø 342-500 VAC HV input
- XDC30-400 - GPIB-MC - GPIB-multichannel
| Model | XDC30-400 |
|---|

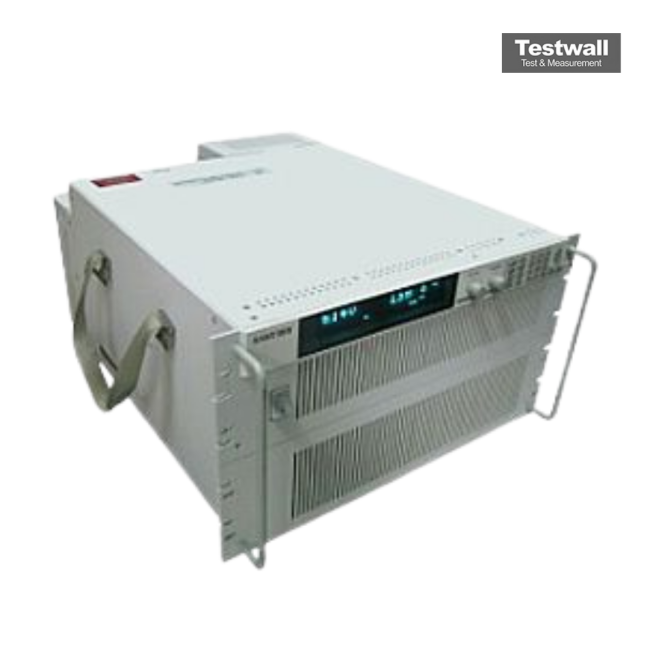

The Xantrex XDC30-400 delivers a maximum output of 30V at 400A, engineered for industries that demand high-current operation. It provides accurate regulation, low noise, and rugged reliability, ensuring performance for critical applications such as battery testing, power simulation, and system validation. With advanced programmability and remote monitoring, this unit enables flexible and automated test environments. Its compact, heavy-duty design incorporates built-in safety protections to guard against overloads and faults.
Ideal for laboratories and production facilities, the XDC30-400 supports efficient system validation and power testing with consistent stability. Its ability to sustain continuous operation makes it a trusted tool for demanding applications.
Testwall can supply the used Xantrex XDC30-400, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Xantrex XDC30-400.
