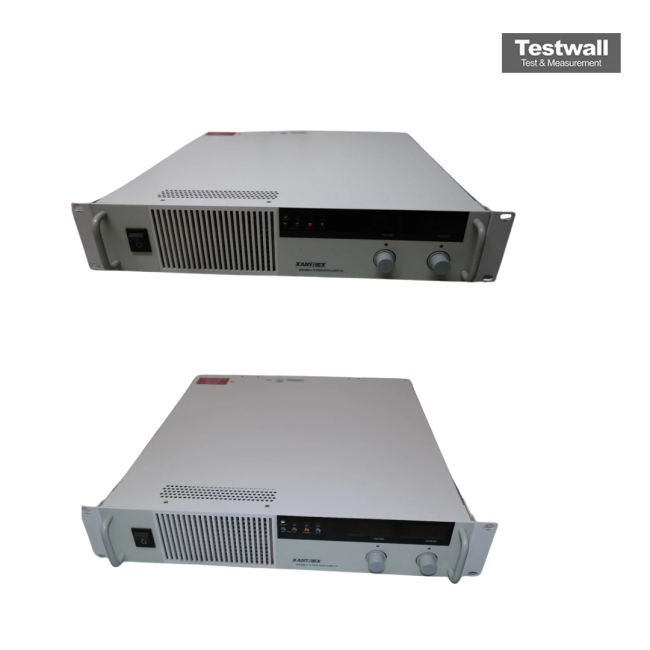

Xantrex XFR40-15
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 40 VDC |
| Output Current | 0 - 15 A |
| Output Power | 600 W |
| Input Voltage | 108 - 132 VAC / 216 - 264 VAC, 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage, RMS) | 1 mV RMS |
| Programming Interface | RS-232, GPIB (IEEE-488) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 3.5 in x 19 in x 19.5 in (88.9 mm x 482.6 mm x 495.3 mm) |
Xantrex XFR40-15 Options:
- XFR40-15 - GPIB-XFR - GPIB Interface card (16-bit)
- XFR40-15 - RS-232-XFR - RS-232 Interface card (16-bit)
- XFR40-15 - ISOL-XFR - Isolated Interface card provides isolated analog control and readback of output voltage and current
- XFR40-15 - ISOL-420 - 4-20 mA isolated analog control
- XFR40-15 - M13A - Locking knobs for front panel controls
| Model | XFR40-15 |
|---|
The Xantrex XFR40-15 is a programmable power supply offering 40V and 15A with 600W maximum output. It features precise regulation, low ripple, and fast transient response, ensuring reliable performance for sensitive applications. Equipped with digital metering, remote programming via RS-232 and GPIB, and robust overload/thermal protection, it delivers consistent and stable DC output.
Ideal for telecom, automotive, and industrial electronics testing, the Xantrex XFR40-15 combines durable construction with intuitive operation. Its remote control capability allows seamless integration into automated systems, enhancing flexibility and usability.
Testwall can supply the used Xantrex XFR40-15, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Xantrex XFR40-15.
