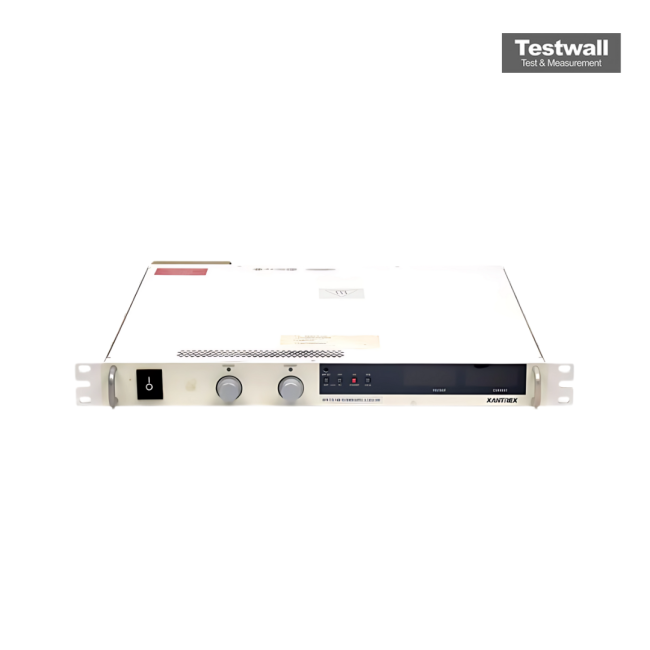

Xantrex XFR7.5-140
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 7.5 VDC |
| Output Current | 0 - 140 A |
| Output Power | 1050 W |
| Input Voltage | 108 - 132 VAC / 216 - 264 VAC |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% of full scale output |
| Load Regulation | 0.01% of full scale output |
| Programming Interface | Analog (0 - 5 VDC or 0 - 10 VDC) and RS-232/RS-485 |
| Operating Temperature | 0°C to 50°C |
| Form Factor | 2U Rack Mount |
Xantrex XFR7.5-140 Options:
- XFR7.5-140 - ISOL - Isolated analog control
- XFR7.5-140 - RS-232 - RS-232 interface card
- XFR7.5-140 - GPIB - GPIB interface card
- XFR7.5-140 - GPIB-MC - GPIB-multichannel
| Model | XFR7.5-140 |
|---|
The Xantrex XFR7.5-140 delivers 7.5V at 140A with a 1050W power output, optimized for high-current, low-voltage environments. It features low ripple, fast transient response, and high voltage/current regulation accuracy. Remote programming is supported via RS-232, GPIB, and analog interfaces.
Ideal for precision-driven industrial and R&D applications, it includes over-voltage and current limit protections, remote sensing, and a user-friendly front panel for easy operation and monitoring.
Testwall can supply the used Xantrex XFR7.5-140, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Xantrex XFR7.5-140.
