Yokogawa 701261
| Attribute | Value |
|---|---|
| Module Type | 16-Channel Voltage/Temperature Input Module |
| Number of Channels | 16 Channels |
| Input Type | Voltage, Thermocouple, and Temperature Measurement |
| Voltage Measurement Range | -2 V to +2 V (DC) |
| Compatible Instrument | ScopeCorder DL750 / DL750P |
| Isolation | Channel-to-Channel Isolation |
| Thermocouple Types Supported | K, E, J, T, L, U, N, R, S, B, W (WRe5-26) |
| Sampling Rate | Up to 1 MS/s (module dependent configuration) |
| A/D Resolution | 16-bit |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
Yokogawa 701261 Options:
- 701947 - 701947 - 100:1 Probe (for Isolated BNC Input), 1000 V (DC + ACpeak) CAT II, 1.5 m
- 702902 - 702902 - 10:1 Probe (for isolated BNC input), Operating temp. range: −40 to 85°C, 2.5 m
- 700929 - 700929 - 10:1 Probe (for isolated BNC input), 1000 V (DC + ACpeak) CAT II, 1.5 m
- 701901 - 701901 - 1:1 Safety BNC adapter lead, 1000 Vrms CAT II
- 701904 - 701904 - 1:1 Safety Adapter Lead, 1000 Vrms CAT II, 600 Vrms CAT III
- 758928 - 758928 - Pinchers tip (Hook type), 1000 Vrms CAT III, 1 set each of red and black
- 701954 - 701954 - Large alligator-clip (Dolphin type), 1000 Vrms CAT III, 1 set each of red and black
- 758929 - 758929 - Alligator clip adaptor set (Rated voltage 1000 V), 1000 Vrms CAT II, 1 set each of red and black
- 758922 - 758922 - Alligator clip adaptor set (Rated voltage 300 V), 300 Vrms CAT II, 1 set each of red and black
- 758921 - 758921 - Fork terminal adapter set, 1000 Vrms CAT II, 1 set each of red and black
- 701940 - 701940 - Passive probe, Non-isolated 600 Vpk (10:1)
- 366926 - 366926 - 1:1 BNC-alligator cable, Non-isolated 42 V or less, 1 m
- 366961 - 366961 - 1:1 Banana-alligator cable, Non-isolated 42 V or less, 1.2 m
- 702915 - 702915 - Current probe, 0.5, 5, 30 Arms, DC to 50 MHz
- 702916 - 702916 - Current probe, 0.5, 5, 30 Arms, DC to 120 MHz
- 701917 - 701917 - Current probe, 5 Arms, DC to 50 MHz
- 701918 - 701918 - Current probe, 5 Arms, DC to 120 MHz
- 701932 - 701932 - Current probe, 30 Arms, DC to 100 MHz
- 701933 - 701933 - Current probe, 30 Arms, DC to 50 MHz
- 701930 - 701930 - Current probe, 150 Arms, DC to 10 MHz
- 701931 - 701931 - Current probe, 500 Arms, DC to 2 MHz
- 720930 - 720930 - Clamp-on probe, AC 50 Arms, 40 Hz to 3.5 kHz
- 720931 - 720931 - Clamp-on probe, AC 200 Arms, 40 Hz to 3.5 kHz
- 701934 - 701934 - Probe power supply, large current output, external probe power supply (4 outputs)
- 438920 - 438920 - Shunt resistor, 250 Ω ±0.1%
- 438921 - 438921 - Shunt resistor, 100 Ω ±0.1%
- 438922 - 438922 - Shunt resistor, 10 Ω ±0.1%
- 701977 - 701977 - Differential probe, 5000 Vrms and 7000 Vpeak or less
- 701978 - 701978 - Differential probe, ±1500 V (DC + ACpeak)
- 758933 - 758933 - Measurement lead set, 1000 V/19 A/1 m length
- 701902 - 701902 - Safety BNC-BNC cable (1 m), 1000 Vrms CAT II
- 701903 - 701903 - Safety BNC-BNC cable (2 m), 1000 Vrms CAT II
- 758917 - 758917 - Measurement lead set, 0.75 m, Stackable type (2 per set)
- 758924 - 758924 - Safety BNC-banana adapter, 500 Vrms CAT II
- 701906 - 701906 - Long test clip, for 701977, 701978 and 701901
| Model | 701261 |
|---|

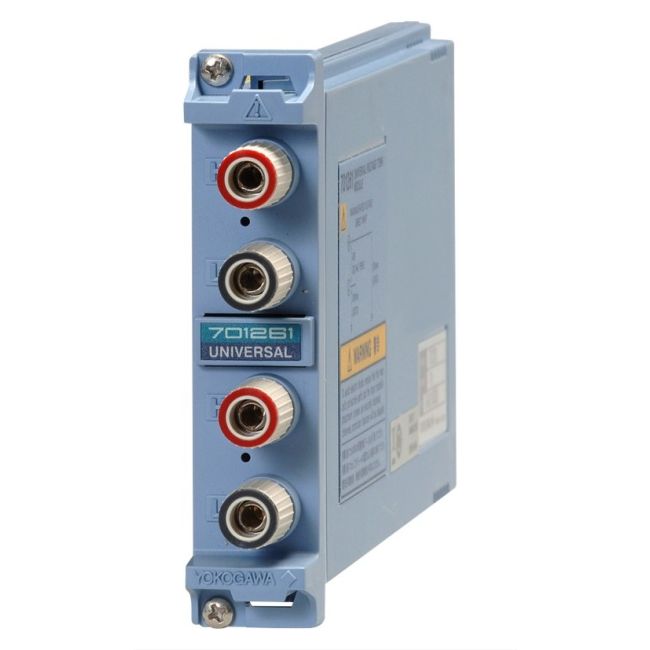

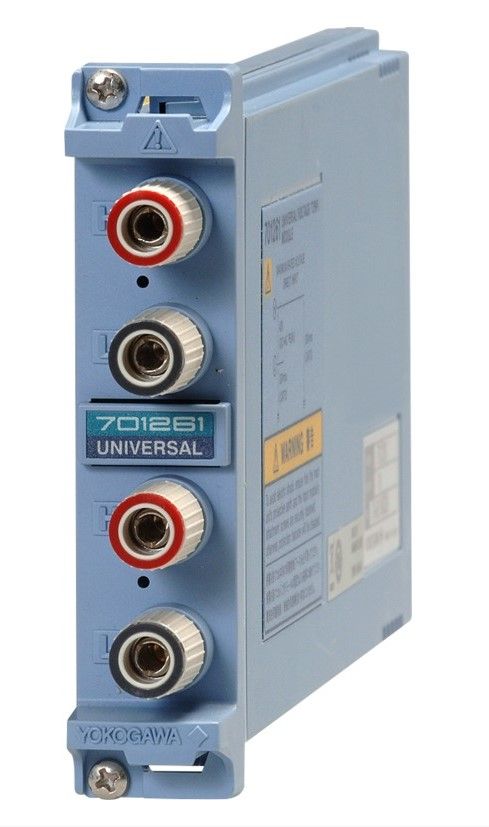

Yokogawa 701261 Universal Voltage & Temperature Module
The Yokogawa 701261 Universal Voltage & Temperature Module is designed for use in industrial control and automation systems. It is a 2-channel input module which is used with the DL750, DL750P, SL1400 & SL1000 mainframes. Yokogawa 701261 Module provides input capabilities for voltage and temperature signals, allowing it to be used for monitoring and controlling various processes and systems in industrial environments.
The Yokogawa 701261 Universal Voltage & Temperature Module can accept a wide range of input signals, including DC voltage, AC voltage, and temperature signals from thermocouples ((K, E, J, T, L, U, N, R, S, B, W, iron-doped gold/chromel)) and RTDs and provide precise and reliable measurement data. Yokogawa 701261 module may include electrical isolation between the input and output signals, which helps to protect against ground loops and other electrical issues.
Specifications for Yokogawa 701261 Universal Voltage & Temperature Module Include:
| Maximum sample rate | 100 kS/s (Voltage), 500 S/s (Temp) |
| Resolution | 16 bit (Voltage), 0.1 °C (Temp) |
| Bandwidth | 40 kHz (Voltage), 100 Hz (Temp) |
| Input Channels | 2 |
