Yokogawa 701270
| Attribute | Value |
|---|---|
| Number of Channels | 16 Channels |
| Input Module Type | Voltage/Thermocouple Input Module |
| Measurement Range | -6 V to +6 V (Voltage), Type K/J/T/E/R/S/B/N (Thermocouple) |
| Sampling Rate | Up to 1 MS/s |
| Resolution | 16-bit |
| Input Impedance | 1 MΩ |
| Isolation | Channel-to-channel isolation provided |
| Compatible Mainframe | Yokogawa ScopeCorder DL750 / DL750P |
| Connector Type | BNC Connectors |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Yokogawa 701270 Options:
- 701270 - 701955 - Bridge head (NDIS, 120 Ω) with 5 m cable
- 701270 - 701956 - Bridge head (NDIS, 350 Ω) with 5 m cable
- 701270 - 700929 - 10:1 Probe (for isolated BNC input) 1000 V (DC + ACpeak) CAT II, 1.5 m
- 701270 - 702902 - 10:1 Probe (for isolated BNC input) Operating temp. range: −40 to 85°C, 2.5 m
- 701270 - 701947 - 100:1 Probe (for isolated BNC input) 1000 V (DC + ACpeak) CAT II, 1.5 m
- 701270 - 701901 - 1:1 Safety BNC adapter lead 1000 Vrms CAT II
- 701270 - 701904 - 1:1 Safety Adapter Lead 1000 Vrms CAT II, 600 Vrms CAT III
- 701270 - 701954 - Large alligator-clip (Dolphin type) 1000 Vrms CAT III
- 701270 - 758928 - Pinchers tip (Hook type) 1000 Vrms CAT III
- 701270 - 758929 - Alligator clip adaptor set (Rated voltage 1000 V) 1000 Vrms CAT II
- 701270 - 758922 - Alligator clip adaptor set (Rated voltage 300 V) 300 Vrms CAT II
- 701270 - 758921 - Fork terminal adapter set 1000 Vrms CAT II
- 701270 - 758933 - Measurement lead set 1000 V/19 A/1 m length
- 701270 - 701934 - Probe power supply, large current output, external probe power supply (4 outputs)
| Model | 701270 |
|---|

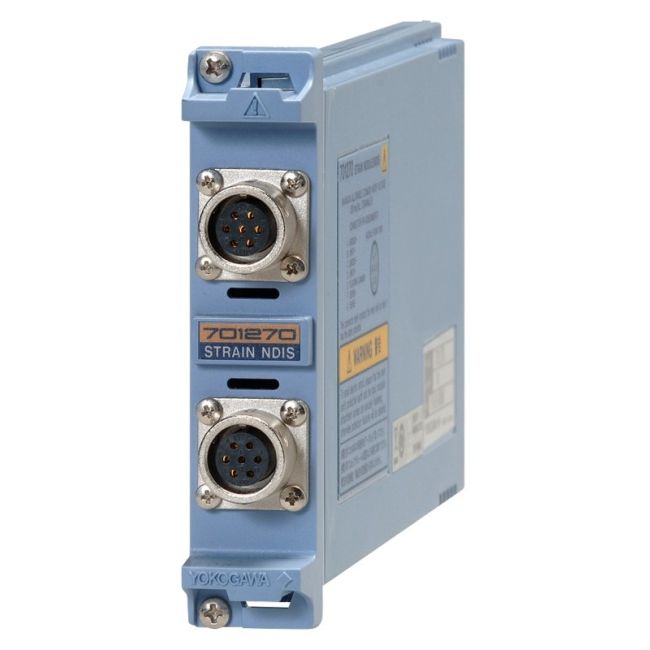

YOKOGAWA 701270 Strain Input Module
The Yokogawa 701270 Strain Module, type NDIS (2 channels), is a versatile instrument designed for use with 701955 or 701956 NDIS bridge heads. Compatible with DL350, DL850 series, DL950, and SL1000, this module supports strain NDIS and provides a built-in bridge power supply of 2.5 and 10 V, along with electronic auto balance.By utilizing the strain module and strain gauge, the ScopeCorder is equipped to detect and display mechanical stress (strain) and assess structural durability (elasticity). The module operates on the principle that the resistance value of a metal foil changes as it expands and contracts, allowing precise and reliable measurement of strain for various applications.
Specifications for the YOKOGAWA 701270 Strain Input Module Include:
| Sample Rate | 100 kS/s |
| Resolution | 16 Bit |
| Bandwidth | 20 kHz |
| Channels | 2 Ch. |
