Yokogawa AQ6373E
| Attribute | Value |
|---|---|
| Wavelength Range | 350 nm to 1200 nm |
| Wavelength Accuracy | ±0.05 nm |
| Wavelength Resolution | 0.02 nm |
| Dynamic Range | 78 dB or more |
| Sensitivity (Maximum) | -90 dBm or less |
| Level Accuracy | ±0.4 dB |
| Level Range | +20 dBm to -90 dBm |
| Measurement Time (Single Sweep) | 0.2 seconds minimum (High Speed mode) |
| Input Interface | FC/PC optical connector (standard) |
| Display | 10.4-inch TFT color LCD touchscreen |
Yokogawa AQ6373E Options:
- AQ6373E - -10 - Standard model
- AQ6373E - -20 - High resolution model
- AQ6373E - -00 - Limited model
- AQ6373E - -L1 - Optical alignment source (Built-in light source)
- AQ6373E - -D - Power cord: UL/CSA standard and PSE compliant, 125 V
- AQ6373E - -F - Power cord: VDE/Korean standard, 250 V
- AQ6373E - -R - Power cord: Australian standard, 250 V
- AQ6373E - -H - Power cord: Chinese standard, 250 V
- AQ6373E - -Q - Power cord: British standard, 250 V
- AQ6373E - -N - Power cord: Brazilian standard, 250 V
- AQ6373E - -T - Power cord: Taiwanese standard, 125 V
- AQ6373E - -B - Power cord: Indian standard, 250 V
- AQ6373E - -U - Power cord: IEC Plug Type B, 250 V
| Model | AQ6373E |
|---|

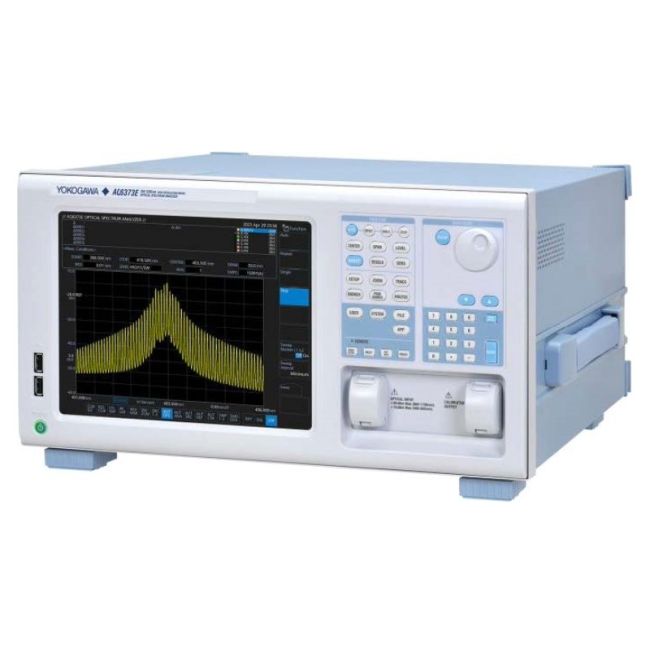

YOKOGAWA AQ6373E Optical Spectrum Analyzer
The Yokogawa AQ6373E Optical Spectrum Analyzer is designed with extensive experience in optical Test & Measurement, stands out as the most reliable and versatile Optical Spectrum Analyzers. This instrument offers exceptional resolution, sensitivity, and a wide measurement power range, making it suitable for diverse applications in R&D and manufacturing. Due to the diffractive technology used, the monochromator in some circumstances could generate high order diffracted light, which appears at wavelengths equal to the integral multiple of input wavelengths. By cutting incoming light below 1150 nm with the built-in filter, the AQ6373E drastically reduces the influence of high order diffracted light on the measurement. Thus, the measured data are always reliable and replicate the real signal under test.
The Yokogawa AQ6373E Optical Sprctrum Analyzer's flexibility allows users to fine-tune parameters for specific testing requirements. Due to its ability to provide high speed, accurate analysis of the wavelength range between 350 nm and 1200 nm, the AQ6373E is well suited for a broad range of applications. With fast measurement capabilities and built-in analysis functions, the AQ6373E optimizes productivity and cost-effectiveness in optical device evaluation. It also offers application-specific modes and remote control options, making it a valuable tool in various industries, from telecommunications to instrumentation and beyond.
Specifications for the YOKOGAWA AQ6373E Optical Spectrum Analyzer Include:
| Wavelength Range | 350 to 1200 nm |
| Wavelength Resolution Settings | 0.01 to 10 nm High (0.02 to 10 nm Standard) |
| Level Sensitivity | -80 dBm Standard |
| Wavelength Accuracy | ±0.05 nm |
