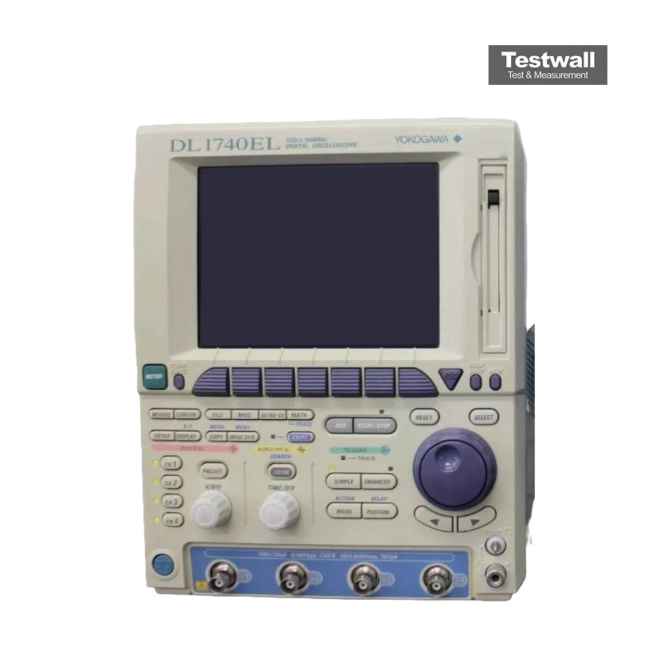

Yokogawa DL1740EL
| Attribute | Value |
|---|---|
| Number of Channels | 4 analog channels + 16 logic channels |
| Bandwidth | 500 MHz |
| Sample Rate | 1 GS/s (single channel), 500 MS/s (all channels simultaneously) |
| Record Length | Up to 2 MW (mega words) per channel |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ / 50 Ω (selectable) |
| Time Base Range | 1 ns/div to 50 s/div |
| Display | 8.4-inch color TFT LCD |
| Interface / Connectivity | GPIB, RS-232, Ethernet, USB |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Model | DL1740EL |
|---|
The Yokogawa DL1740EL 4 Channel 500MHz 1GS/s Digital Scope offers 4 channels with a bandwidth of 500 MHz and a real-time sampling rate of 1 GS/s, delivering precise and reliable signal analysis. It provides high acquisition memory, advanced triggering functions, and versatile display modes to capture complex waveforms with clarity.
Ideal for electronics design, troubleshooting, and educational applications, the DL1740EL ensures accurate measurements and detailed waveform observation in demanding environments.
Testwall can supply the used Yokogawa DL1740EL 4 Channel 500MHz 1GS/s Digital Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Yokogawa DL1740EL 4 Channel 500MHz 1GS/s Digital Scope.
