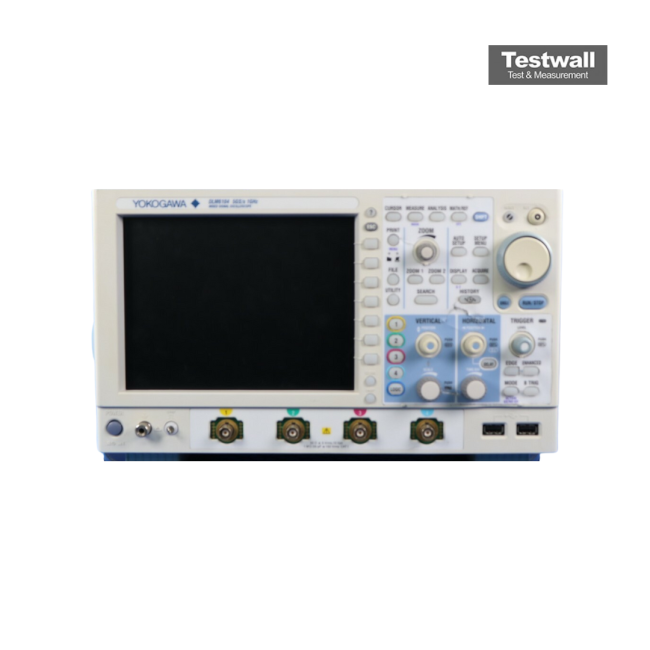

Yokogawa DLM6104
| Attribute | Value |
|---|---|
| Number of Channels | 4 analog channels + 16 logic channels |
| Bandwidth | 1 GHz |
| Sample Rate | 2.5 GS/s (single channel), 1.25 GS/s (all channels) |
| Record Length | Up to 250 Mpoints per channel |
| Vertical Resolution | 8-bit (up to 12-bit in high resolution mode) |
| Input Impedance | 1 MΩ / 50 Ω selectable |
| Display | 12.1-inch TFT color LCD touchscreen, 1280 x 800 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Connectivity / Interfaces | USB, LAN (LXI), GPIB (optional), SD card slot, HDMI output |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Model | DLM6104 |
|---|
The Yokogawa DLM6104 4 Ch + 16 Logic 1GHz 5GS/s Mixed Signal Scope offers advanced 4-channel analog and 16-channel logic inputs, providing 1GHz bandwidth and up to 5GS/s sampling rate for precise signal analysis. It ensures high-resolution waveform capture, deep memory for long data records, and versatile triggering capabilities, making it ideal for mixed-signal debugging and validation tasks.
Designed for both analog and digital applications, this scope delivers reliable performance in R&D, production, and troubleshooting environments, supporting a wide range of measurement and analysis needs.
Testwall can supply the used Yokogawa DLM6104 4 Ch + 16 Logic 1GHz 5GS/s Mixed Signal Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Yokogawa DLM6104 4 Ch + 16 Logic 1GHz 5GS/s Mixed Signal Scope.
