Yokogawa

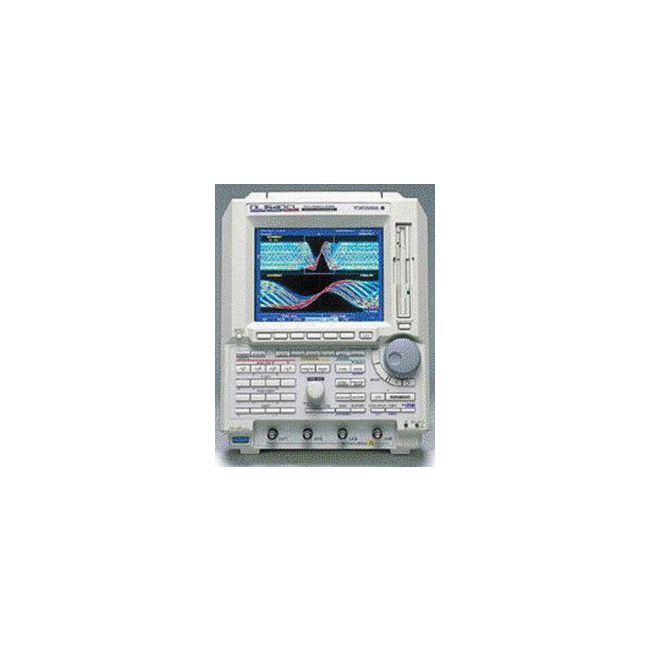

Yokogowa DL1540C
150 MHz Bandwidth
4 Analog Channels Number of Channels
200 MS/s (single channel), 100 MS/s (all channels) Sample Rate
up to 1 MW (with memory expansion option) Record Length
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 150 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 200 MS/s (single channel), 100 MS/s (all channels) |
| Record Length | up to 1 MW (with memory expansion option) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 10 V/div |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Display | 8.4-inch TFT Color LCD |
| Interface/Connectivity | GP-IB, RS-232, Printer Interface, Floppy Disk Drive |
| Model | DL1540C |
|---|
