Yokogawa

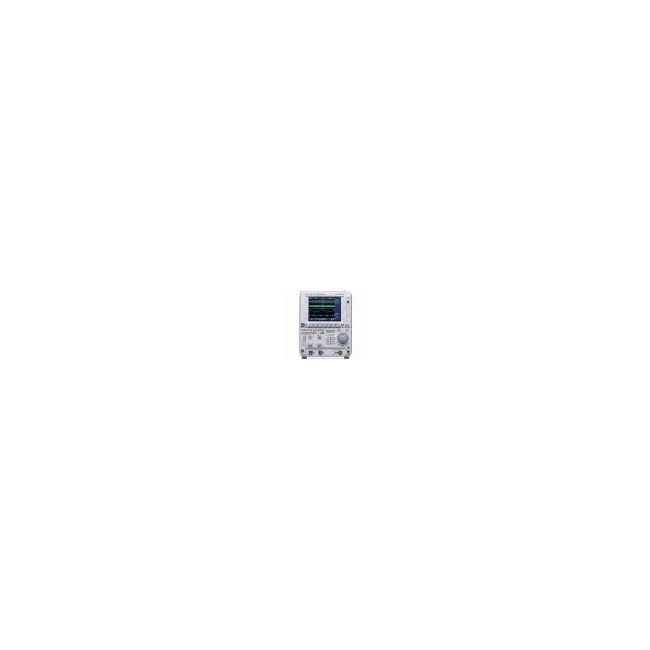

Yokogowa DL1640L
4 Channel 200MHz Digital Oscilloscope
4 Analog Channels Number of Channels
500 MHz Bandwidth
200 MS/s (single channel), 100 MS/s (all channels) Sample Rate
Up to 1 MW (1,000,000 words) per channel Record Length
8-bit resolution Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 Analog Channels |
| Bandwidth | 500 MHz |
| Sample Rate | 200 MS/s (single channel), 100 MS/s (all channels) |
| Record Length | Up to 1 MW (1,000,000 words) per channel |
| Vertical Resolution | 8-bit resolution |
| Vertical Sensitivity | 2 mV/div to 10 V/div |
| Time Base Range | 1 ns/div to 50 s/div |
| Display | 8.4-inch TFT Color LCD Display |
| Input Impedance | 1 MΩ / 50 Ω (selectable) |
| Interface / Connectivity | GP-IB, RS-232, Ethernet (10BASE-T), SCSI |
| Model | DL1640L |
|---|
The Yokogawa DL1640L is a 4 Channel, 200.0 MSa/sec , 200.0 MHz Digital Oscilloscope
