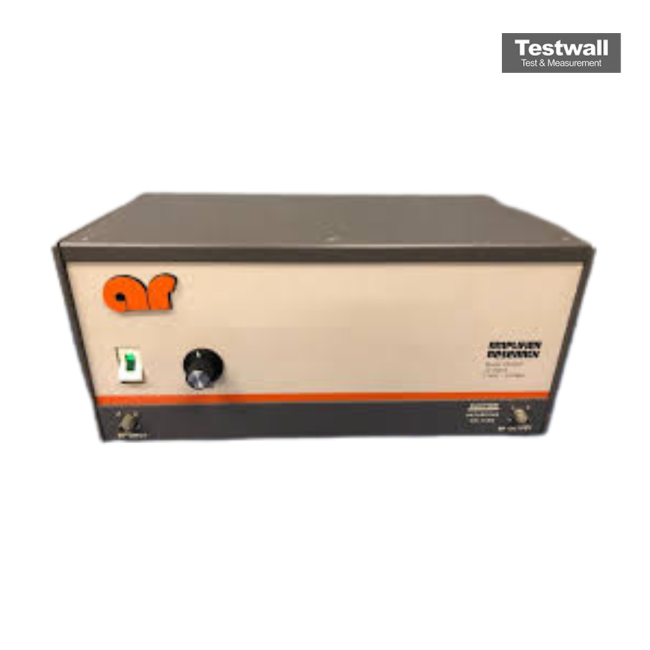

Amplifier Research 25A250B
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 250 MHz |
| Output Power | 25 Watts CW Minimum |
| Gain | 50 dB Minimum |
| Input Power for Rated Output | 0 dBm (1 mW) Maximum |
| Output VSWR | 2.0:1 Maximum |
| Input VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum at Rated Output |
| Power Supply Requirement | 105–125 V / 210–250 V AC, 48–440 Hz |
| Cooling Method | Forced Air Cooling |
| Connector Type | Type N Female (Input and Output) |
| Model | 25A250B |
|---|
The Amplifier Research 25A250B delivers up to 25 W CW output power across a frequency range up to 250 MHz, built on the proven 25W platform. The 'A' prefix includes automatic power leveling (ALC), while the 'B' suffix represents enhanced performance and efficiency. This design ensures stable and accurate amplification, making it a highly reliable tool for laboratory, industrial, and academic environments.
Ideal for EMC evaluations, conducted testing, and versatile RF applications, the 25A250B offers precision, reliability, and broad usability across testing environments.
Testwall can supply the used Amplifier Research 25A250B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 25A250B.
