Anritsu 69037B
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 20 GHz |
| Output Power Range | -110 dBm to +20 dBm |
| Frequency Resolution | 0.001 Hz |
| SSB Phase Noise | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Spectral Purity (Harmonics) | -30 dBc typical |
| Frequency Switching Speed | 10 ms typical |
| Power Level Accuracy | ±1.0 dB |
| Modulation Types | AM, FM, Phase, and Pulse Modulation |
| Output Connector | Type-N Female (50 Ohm) |
| Interface/Remote Control | GPIB (IEEE-488) |
| Model | 69037B |
|---|

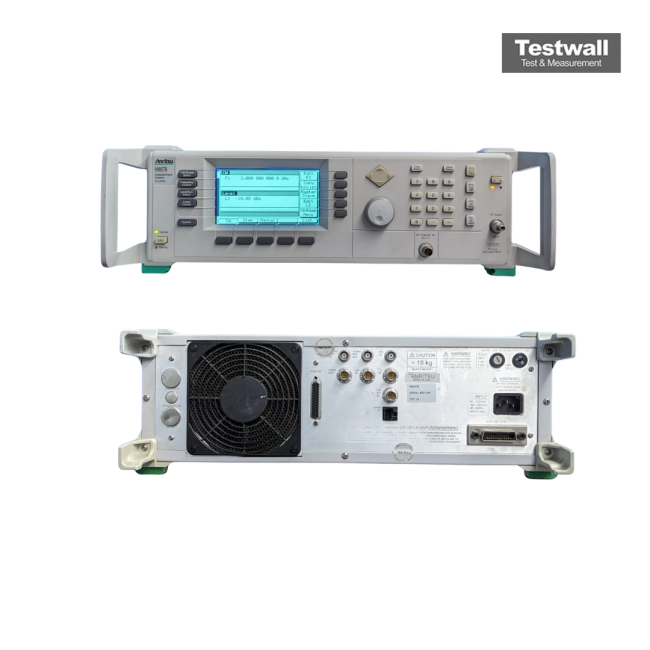

The Anritsu 69037B Synthesized CW Generator is a microprocessor-based signal source designed with high-resolution phase-lock capability. It covers a frequency range of 2.0 to 20.0 GHz, generating both discrete CW frequencies and step sweeps across wide or narrow bands. Output power reaches +13.0 dBm, with options for +11.0 dBm using a step attenuator or +3.0 dBm with an electronic step attenuator. All functions are controllable locally from the front panel or remotely via the IEEE-488 GPIB interface.
This generator is ideal for advanced testing applications requiring precision, stability, and remote control functionality. Its wide frequency range makes it suitable for telecommunications, aerospace, and research environments.
Testwall can supply the used Anritsu 69037B Synthesized CW Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 69037B Synthesized CW Generator.
