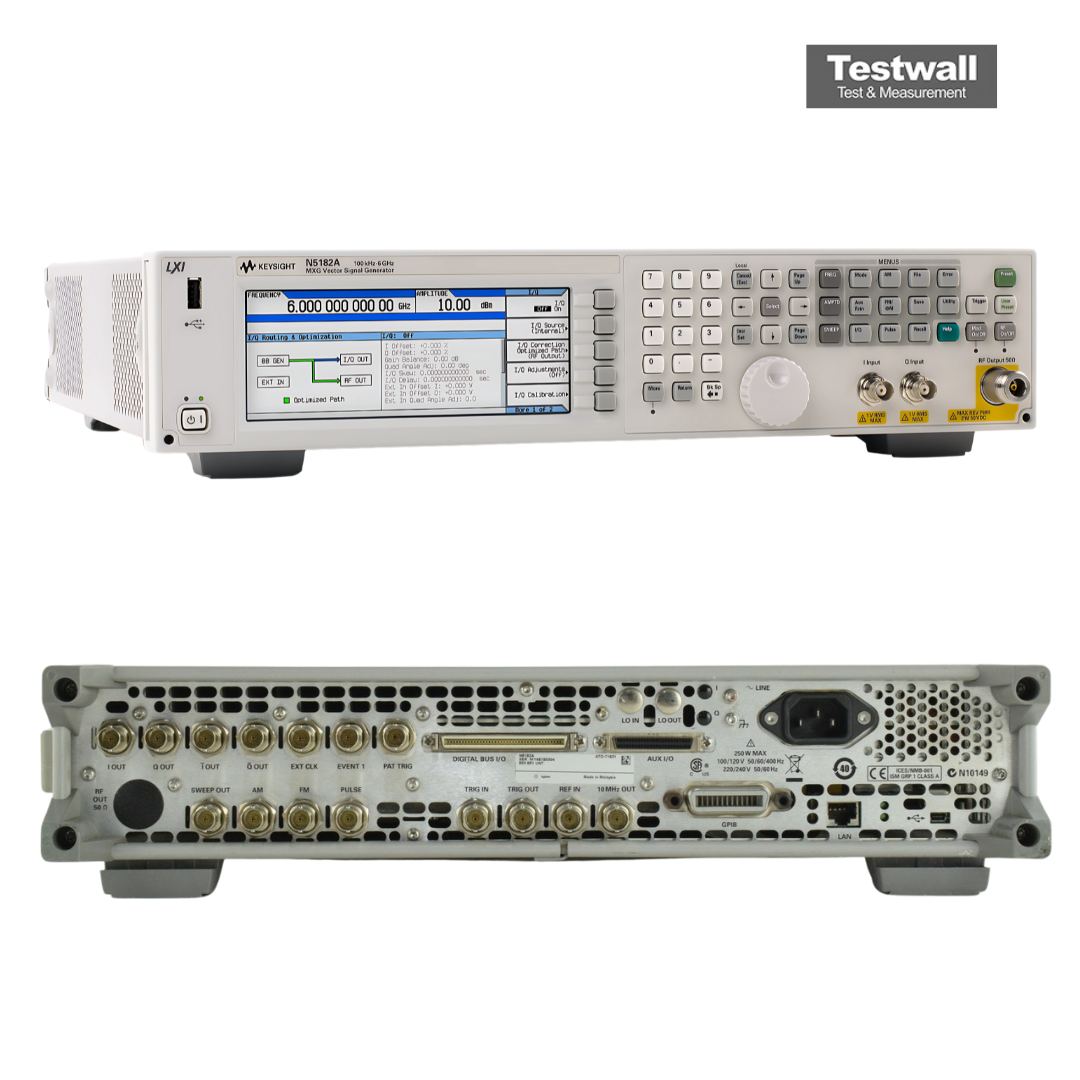

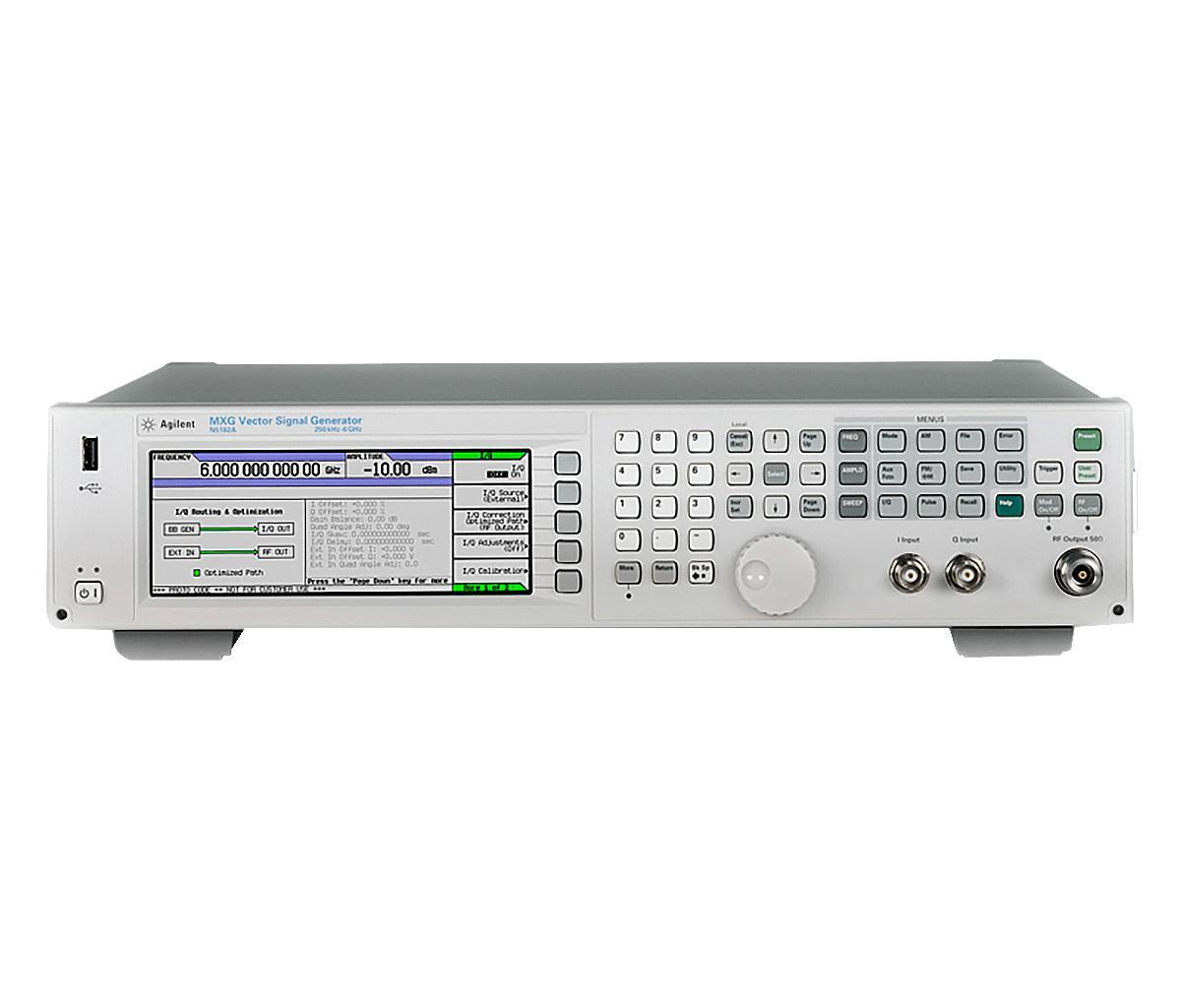

Keysight (Agilent) N5182A
Vector signal generator, 100 kHz to 3 or 6 GHz
≤ ±0.8 dB (typ.) Level Accuracy
0.01 Hz Frequency Resolution
< -30 dBc to 3 GHz Harmonics
step sweep, list mode Sweep Modes
100 kHz to 3 or 6 GHz; spec. from 250 kHz Frequency Range
| Attribute | Value |
|---|---|
| Level Accuracy | ≤ ±0.8 dB (typ.) |
| Frequency Resolution | 0.01 Hz |
| Harmonics | < -30 dBc to 3 GHz |
| Sweep Modes | step sweep, list mode |
| Frequency Range | 100 kHz to 3 or 6 GHz; spec. from 250 kHz |
| Output Power | -110 to +13 dBm to 2.5 GHz, +7 dBm at 5.8 to 6 GHz |
| SSB Phase Noise | -121 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Modulation | AM, FM, ΦM, pulse, I/Q (depending on configuration) |
| Non-Harmonics | < -42 to -54 dBc, >10 kHz offset |
| Switching Speed | ≤ 5 ms (typ.) |
| Timebase Aging | < ±1 × 10⁻⁶ per year |
| RF Output Connector | Type-N female |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 426 × 103 × 432 mm |
| Weight | 12.5 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5182A-503 | 100 kHz to 3 GHz | Vector signal generator |
| N5182A-506 | 100 kHz to 6 GHz | Vector signal generator |
Keysight Technologies N5182A-503 Options:
- N5182A-503 - 503 - Frequency range from 250 kHz to 3 GHz
- N5182A-503 - 506 - Frequency range from 250 kHz to 6 GHz
- N5182A-503 - UNZ - Fast switching
- N5182A-503 - 1EQ - Low power (<-110 dBm)
- N5182A-503 - UNU - Pulse modulation
- N5182A-503 - UNT - AM, FM, phase modulation
- N5182A-503 - 006 - Instrument security
- N5182A-503 - 1ER - Flexible reference input (1-50 MHz)
- N5182A-503 - 1EM - Move RF output to rear panel
- N5182A-503 - UK6 - Commercial calibration certificate with test data
- N5182A-503 - 651 - Internal baseband generator (30 MSa/s, 8 MSa)
- N5182A-503 - 652 - Internal baseband generator (60 MSa/s, 8 MSa)
- N5182A-503 - 654 - Internal baseband generator (125 MSa/s, 8 MSa)
- N5182A-503 - 019 - Increase baseband generator memory to 64 MSa
- N5182A-503 - 1EL - Differential I/Q outputs
- N5182A-503 - 403 - Calibrated AWGN
- N5182A-503 - UNV - Enhanced dynamic range
- N5182A-503 - N7600B - Signal Studio for 3GPP W-CDMA with HSDPA/HSUPA
- N5182A-503 - N7601B - Signal Studio for 3GPP2 CDMA
- N5182A-503 - N7602B - Signal Studio for GSM/EDGE
- N5182A-503 - N7617B - Signal Studio for 802.11 WLAN
- N5182A-503 - N7615B - Signal Studio for 802.16 WiMax
- N5182A-503 - N7612B - Signal Studio for TD-SCDMA
- N5182A-503 - 1CM - Rackmount kit
- N5182A-503 - 1CN - Front handle kit
- N5182A-503 - 1CP - Rackmount and front handle kit
- N5182A-503 - 1CR - Rack slide kit
The Keysight (Agilent) N5182A is available in several frequency configurations (100 kHz to 3 or 6 GHz). See the table of available configurations in the Specification tab and choose the version you need.
Testwall can supply the used Keysight (Agilent) N5182A, fully tested, with traceable calibration on request and a 12-month warranty. Please contact us if you need calibration or repair of the Keysight (Agilent) N5182A.
Options and configurations
- Modulation Bandwidth: 100 MHz internal with Opt. 654
- Frequency Range: 100 kHz to 3 or 6 GHz (Opt. 503/506); spec. from 250 kHz
- Output Power: -110 to +13 dBm to 2.5 GHz, +7 dBm at 5.8 to 6 GHz; -127 dBm with Opt. 1EQ
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU), I/Q
- Switching Speed: ≤ 5 ms (typ.); ≤ 1.15 ms with Opt. UNZ
