Anritsu

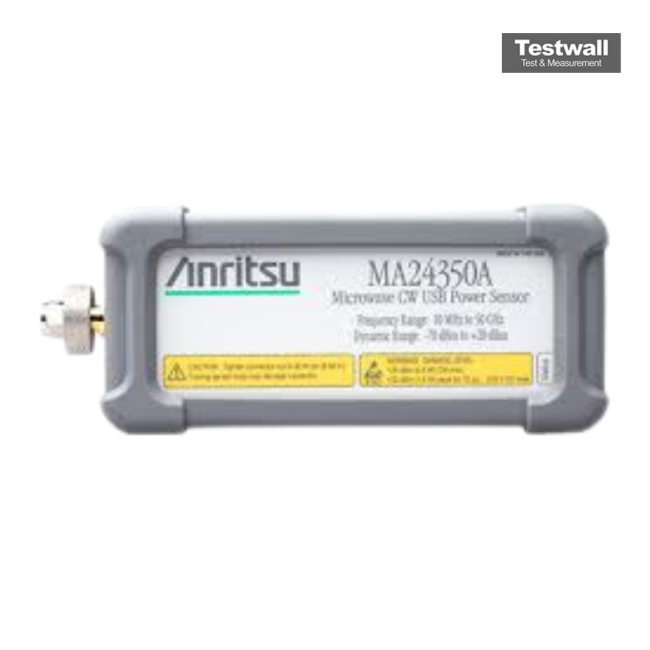

Anritsu MA24350A
10MHz-50GHz -70 To +20dBm CW USB Power Sensor
50 MHz to 50 GHz Frequency Range
-35 dBm to +20 dBm Power Measurement Range
2.4 mm (m) Connector Type
±0.15 dB (typical) Measurement Uncertainty
1.20 (typical, 50 MHz to 50 GHz) VSWR
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 50 GHz |
| Power Measurement Range | -35 dBm to +20 dBm |
| Connector Type | 2.4 mm (m) |
| Measurement Uncertainty | ±0.15 dB (typical) |
| VSWR | 1.20 (typical, 50 MHz to 50 GHz) |
| Rise Time | 1 µs (typical) |
| Operating Temperature | 0°C to +55°C |
| Interface | USB 2.0 |
| Power Supply | Bus powered via USB |
| Dimensions (L x Diameter) | 127 mm x 22 mm |
| Model | MA24350A |
|---|
The Anritsu MA24350A is a high-performance USB power sensor operating from 10MHz to 50GHz with a dynamic range of -70 dBm to +20 dBm, ideal for accurate CW power measurements.
This USB sensor is tailored for applications requiring high-frequency range and precision, perfect for RF and microwave systems testing in laboratories and field environments.
Testwall can supply the used Anritsu MA24350A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA24350A.
