Anritsu

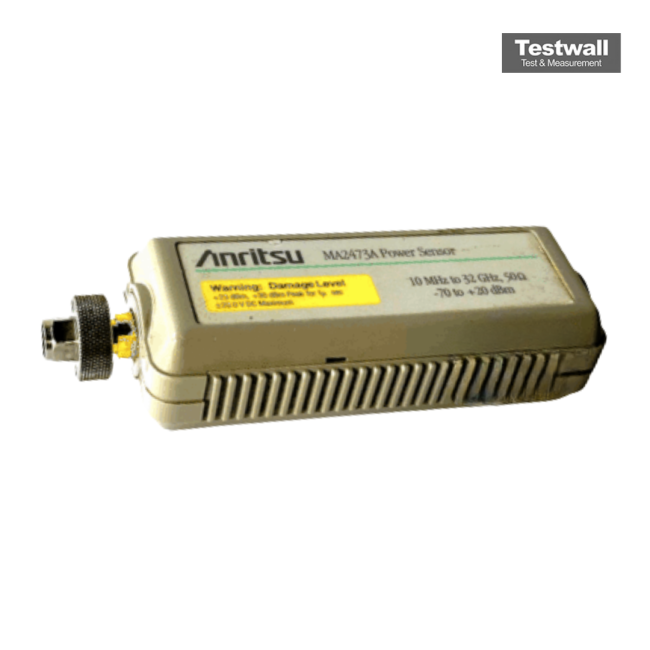

Anritsu MA2473A
10 MHz to 18 GHz Frequency Range
2.92 mm (K-connector) Connector Type
+20 dBm Maximum Input Power
-70 dBm to +20 dBm Dynamic Range
Broadband Diode Power Sensor Detector Type
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Connector Type | 2.92 mm (K-connector) |
| Maximum Input Power | +20 dBm |
| Dynamic Range | -70 dBm to +20 dBm |
| Detector Type | Broadband Diode Power Sensor |
| SWR (VSWR) | 1.15 (typical) at 18 GHz |
| Sensitivity | -70 dBm minimum detectable power |
| Calibration Factor Accuracy | ±1.0% (typical) |
| Operating Temperature Range | 0°C to +55°C |
| Compatible Power Meters | Anritsu ML2430A Series, ML2480B Series Power Meters |
Anritsu MA2473A Options:
- MA2473A - MA2473D - Standard Diode Sensor, 10 MHz to 32 GHz, K(m) connector
- ML2490A - 06 - Rear Mount Input A
- ML2490A - 07 - Rear Input A and Reference
- ML2490A - 08 - Rear Mount Inputs A, B and Reference
- ML2490A - 09 - Rear Mount Inputs A and B
- ML2490A - 33 - Extra Operating Manual
- ML2490A - 34 - Extra Programming Manual
- ML2490A - 37 - Electronic Manuals (deletes paper version from shipment)
- ML2490A - 98 - Calibration to Z540, ISO Guide 25
- ML2490A - 99 - Premium Calibration
- ML2480A - 06 - Rear Mount Input A
- ML2480A - 07 - Rear Input A and Reference
- ML2480A - 08 - Rear Mount Inputs A, B and Reference
- ML2480A - 09 - Rear Mount Inputs A and B
- ML2480A - 15 - Factory Fitted 50MHz and 1GHz Calibrator (required by MA2411B Sensor)
- ML2480A - 15R - Retro Fit Calibrator Kit
- ML2480A - 33 - Extra Operating Manual ML2487/8A
- ML2480A - 34 - Extra Programming Manual ML2487/8A
- ML2480A - 35 - Extra Operating Manual: Japanese
- ML2480A - 36 - Extra Programming Manual: Japanese
- ML2480A - 37 - Electronic Manuals only (deletes paper version from shipment)
- ML2480A - 98 - Calibration to Z540, ISO Guide 25
- ML2480A - 99 - Premium Calibration
- ML2400A - 32A - Maintenance Manual ML2480/90A Series
- ML2400A - 31A - Option 31, Extra Operation/Prog manual ML2480A
- ML2400A - 10585-00003 - Maintenance Manual ML2400A Series
- ML2400A - 33 - Extra Operating & Programming Manual ML2437/8A
- MA2499B - MA2499B - Anritsu 4700 & 4600 Series Sensor Adapter
- ML2400A - 06 - Rear Mount Input A on ML2437A
- ML2400A - 07 - Rear Input A and Reference on ML2437A
- ML2400A - 08 - Rear Mount Inputs A, B and Reference
- ML2400A - 09 - Rear Mount Inputs A and B on ML2438A
- ML2400A - 11 - NiMH Battery with Desktop Charger
- ML2400A - 11A - NiMH Battery with Desktop Charger (for use in Japan only)
- ML2400A - 22 - 3m Sensor Cable
- ML2400A - 23 - 5m Sensor Cable
- ML2400A - 24 - 10m Sensor Cable
- ML2400A - 25 - 30m Sensor Cable
- ML2400A - 26 - 50m Sensor Cable
- ML2400A - 27 - 100m Sensor Cable
- ML2400A - 30 - Extra Operation Manual ML2437/8A
- ML2400A - 98 - Calibration to Z540, ISO Guide 25
- ML2400A - 99 - Premium Calibration
- ML2400A - 30A - Option 30, Extra Operation/Prog manual (For use in Japan, only)
- MA2473A - 760-209 - Hardside Transit Case
- MA2473A - D41310 - Soft Carry Case with Shoulder Strap
- MA2473A - MA2418A - 50 MHz Reference Oscillator with Power Supply
- MA2473A - ML2400A-01 - Rack Mount, single unit
- MA2473A - ML2400A-03 - Rack Mount, side by side
- MA2473A - ML2400A-05 - Front Bail Handle
- MA2473A - ML2400A-12 - Front Panel Cover
- MA2473A - ML2400A-20 - Spare 1.5m Sensor Cable
- MA2473A - ML2400A-21 - 0.3m Sensor Cable
- MA2473A - ML2400A-28 - RS232 Bootload Cable
- MA2473A - ML2400A-29 - Bulkhead Adapter
- MA2473A - ML2419A - Range Calibrator
- MA2473A - MA2497A - Agilent/HP84xxA Series Sensor Adaptor
| Model | MA2473A |
|---|
The Anritsu MA2473A is designed for high-frequency RF diagnostics, covering 10 MHz to 32 GHz with an exceptional dynamic range of –70 dBm to +20 dBm (~90 dB). It features wideband performance, rapid diode measurement logic, and EEPROM-stored calibration constants for precise measurement consistency.
Ideal for aerospace, telecom, and advanced RF testing, the Anritsu MA2473A supports both CW and pulsed signals, ensuring reliable performance in demanding environments.
Testwall can supply the used Anritsu MA2473A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA2473A.
