Anritsu ME7760A
| Attribute | Value |
|---|---|
| Frequency Range | 1.25 GHz to 2.5 GHz |
| Interface Type | SONET/SDH |
| Data Rate | OC-48 / STM-16 (2.488 Gbps) |
| Measurement Capability | BER (Bit Error Rate) Testing, SONET/SDH Overhead Analysis |
| Optical Interface | Single-mode and Multi-mode Fiber Support |
| Tributary Testing | DS1, DS3, E1, E3, STS-1, VT1.5 Tributary Access |
| Pattern Generation | PRBS (Pseudo-Random Bit Sequence) and Fixed Word Patterns |
| Alarm Detection | LOF, LOS, AIS, RDI, and Performance Monitoring Alarms |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Form Factor | Portable Benchtop Unit |
Anritsu ME7760A Options:
- ME7760A - MP1801A - 43.5G MUX
- ME7760A - MP1802A - 43.5G DEMUX
- ME7760A - MX177601A - SDH/SONET Pattern Editor
| Model | ME7760A |
|---|

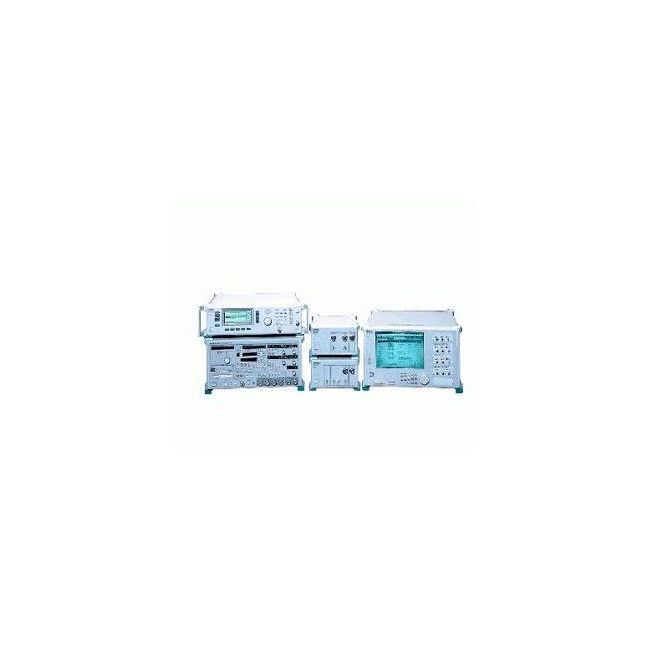

The Anritsu ME7760A 43.5 Gbit/s BERT System combines five key hardware modules with GPIB-controlled software, delivering precise signal generation and error detection. It supports frequencies from 25 Gbps to 43.5 Gbps, with low jitter, high-quality waveforms, and advanced 4-channel parallel testing. Its modular design includes MUX/DEMUX components, pulse pattern generation, and error analysis for SONET/SDH and PRBS testing, making it an ideal solution for optical/electrical system verification.
Supporting independent channel adjustment, programmable PRBS patterns, and SONET/SDH frames up to OC-768c, the ME7760A provides unmatched flexibility. Instruments can operate standalone or in integrated configurations, ensuring optimized testing for high-speed communication devices.
Testwall can supply the used Anritsu ME7760A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu ME7760A.
