Anritsu MG3641A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1040 MHz |
| Frequency Resolution | 0.01 Hz |
| Output Level Range | -144 dBm to +13 dBm |
| Output Level Resolution | 0.01 dB |
| Frequency Accuracy | ±1 ppm (with internal reference) |
| Modulation Types | AM, FM, Phase Modulation (PM), Pulse Modulation |
| FM Deviation Range | Up to 400 kHz |
| AM Modulation Depth | 0% to 99.9% |
| Output Impedance | 50 Ohms |
| Power Requirements | 100/120/220/240 VAC, 48 to 66 Hz |
Anritsu MG3641A 12KHz-1040MHz Signal Generator Options:
- MG3641A - 01 - Reference Oscillator
- MG3641A - 11 - Pulse Modulator
- MG3641A - 21 - Af Synthesizer
- MG3641A - 22 - Fsk Encoder
- MG3641A - 23 - Pattern Generator
| Model | MG3641A |
|---|

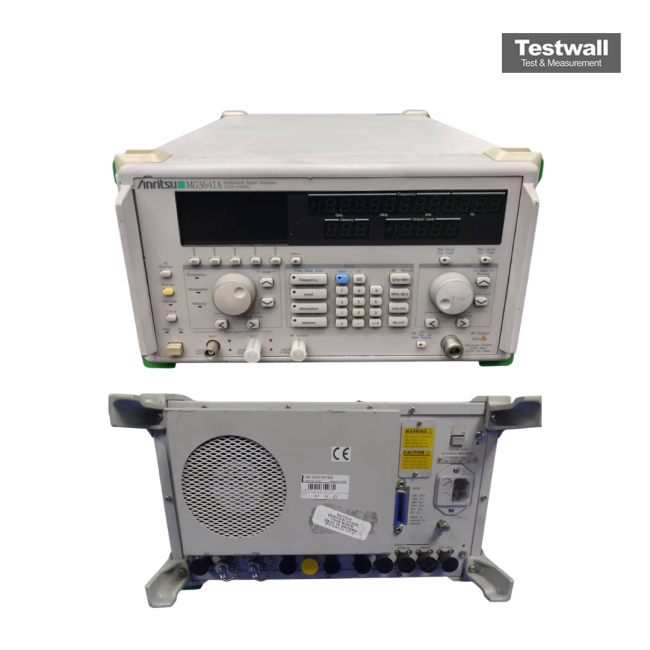

The Anritsu MG3641A is a high-performance signal generator covering frequencies from 12KHz to 1040MHz. It provides high spectral purity and precise level control, making it ideal for RF testing environments requiring stability and accuracy. Equipped with modulation capabilities and advanced signal characteristics, it supports AM, FM, and phase modulation with excellent output resolution.
Perfect for RF component evaluation, receiver sensitivity testing, and communication system development, the MG3641A offers reliable performance and flexibility for diverse applications.
Testwall can supply the used Anritsu MG3641A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3641A.
