Anritsu

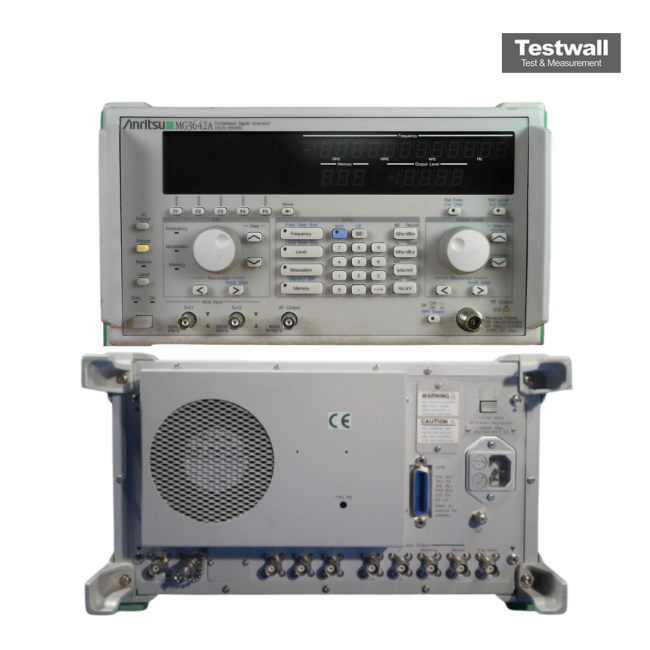

Anritsu MG3642A
125KHz-2GHz Signal Generator
125 kHz to 2080 MHz Frequency Range
0.01 Hz Frequency Resolution
-144 dBm to +13 dBm Output Power Range
0.1 dB Output Power Resolution
Up to 400 kHz FM Deviation Range
| Attribute | Value |
|---|---|
| Frequency Range | 125 kHz to 2080 MHz |
| Frequency Resolution | 0.01 Hz |
| Output Power Range | -144 dBm to +13 dBm |
| Output Power Resolution | 0.1 dB |
| FM Deviation Range | Up to 400 kHz |
| AM Modulation Depth | 0% to 99.9% |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (1 GHz) |
| Output Impedance | 50 Ohms |
| Interface | GPIB (IEEE 488.2) |
| Power Supply | 100-240 VAC, 50/60 Hz |
Anritsu MG3642A 125KHz-2GHz Signal Generator Options:
- MG3642A - 01 - Reference Oscillator
- MG3642A - 11 - Pulse Modulator
- MG3642A - 21 - Af Synthesizer
- MG3642A - 22 - Fsk Encoder
- MG3642A - 23 - Pattern Generator
| Model | MG3642A |
|---|
The Anritsu MG3642A Signal Generator operates across a wide frequency range from 125KHz to 2GHz, offering high spectral purity, low phase noise, and a wide output level range for diverse RF testing environments.
Ideal for use in telecommunications, component testing, and RF applications, it supports precise signal synthesis and modulation capabilities.
Testwall can supply the used Anritsu MG3642A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3642A.
