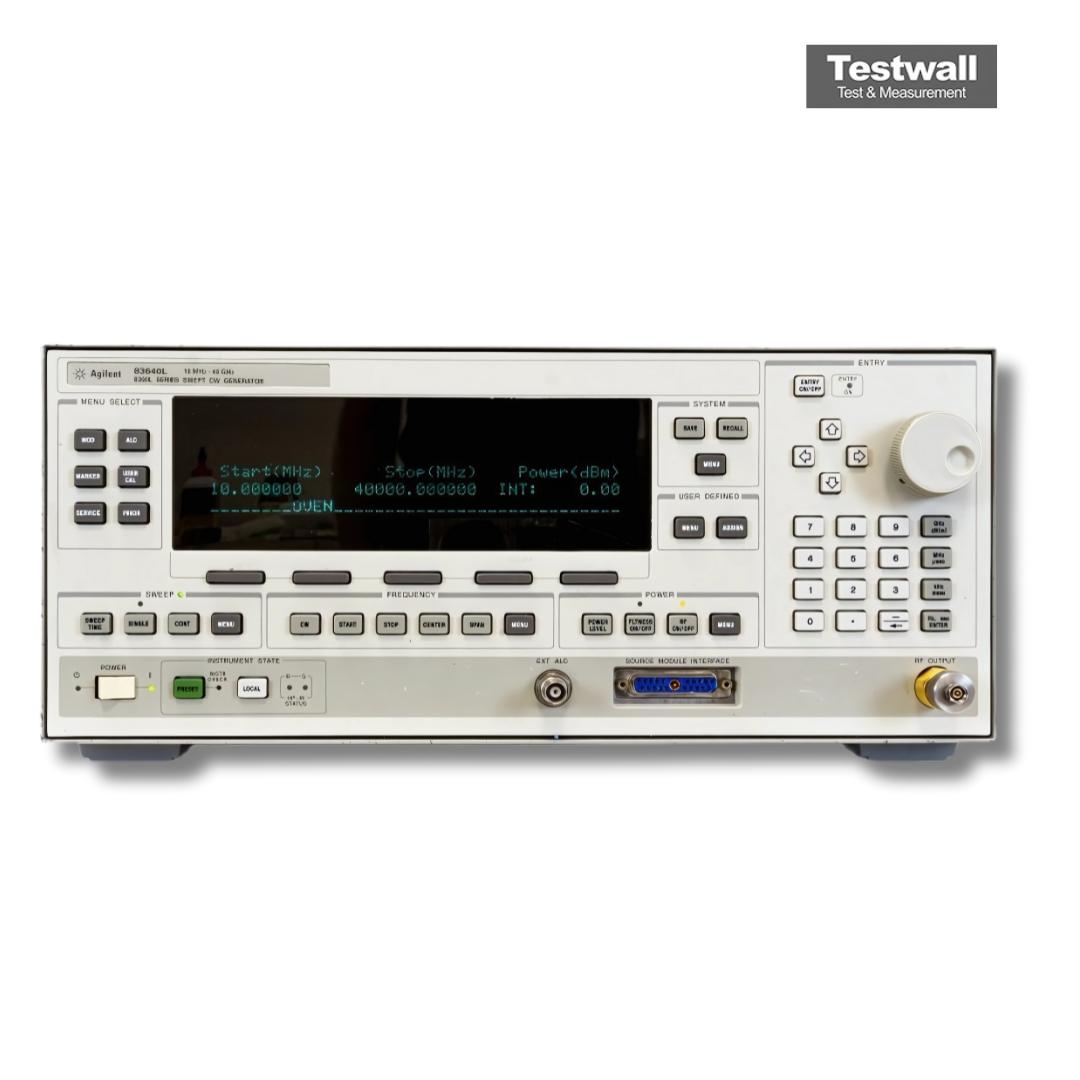

Keysight (Agilent) 83640L
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Frequency Resolution | 1 kHz |
| Interfaces | GPIB |
| Dimensions | 425 × 178 × 648 mm |
| Weight | 27 kg |
| Output Power | -20 dBm to +10 dBm (+6 dBm at 26.5 to 40 GHz) |
| SSB Phase Noise | -80 dBc/Hz at 10 GHz, 10 kHz offset |
| Level Accuracy | ±0.7 dB at 2 to 20 GHz, > -10 dBm (spec.) |
| Non-Harmonics | -60 dBc to 20 GHz, -54 dBc to 40 GHz, -52 dBc to 50 GHz |
| Switching Speed | 15 ms + 5 ms per GHz step (max.) |
| Sweep Modes | step sweep, list mode, ramp sweep, power sweep (801 points) |
| Timebase Aging | 10 MHz, 5 × 10⁻¹⁰ per day, 1 × 10⁻⁷ per year |
| RF Output Connector | 2.4 mm male front panel |
Keysight (Agilent) 83640L Options:
Options available for the Keysight (Agilent) 836xxL synthesized swept CW generators. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- 83640L - 001 - Step attenuator
- 83640L - 004 - RF output moved to rear panel
- 83640L - 008 - 1 Hz frequency resolution
- 83640L - 1E5 - High-stability timebase
- 83640L - 1CM - Rack mount kit
- 83640L - 1CN - Front handle kit
- 83640L - 1CP - Rack mount kit with handles
The Keysight (Agilent) 83640L Synthesized Swept CW Generator delivers +10 dBm calibrated output power, harmonics of -50 dBc below 26.5 GHz, and SSB phase noise below -80 dBc at 10 GHz and 10 kHz offset. It includes a complete analog sweeper and an option for -110 dBm output with a step attenuator.
Ideal for high-performance test setups, the 83640L offers versatility with precise frequency sweeps and fast tuning, making it suitable for advanced RF applications.
Testwall can supply the used Keysight (Agilent) 83640L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83640L.
Options and configurations
- Frequency Resolution: 1 kHz (1 Hz with Opt. 008)
- Output Power: -20 dBm (-110 dBm with Opt. 001) to +10 dBm (+6 dBm at 26.5 to 40 GHz)
- RF Output Connector: 2.4 mm male front panel (rear panel with Opt. 004)
