Anritsu MG3670B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Output Power Range | -144 dBm to +13 dBm |
| Frequency Resolution | 0.01 Hz |
| Phase Noise | -116 dBc/Hz at 1 GHz, 20 kHz offset |
| Modulation Types | AM, FM, PM, Pulse, IQ (Vector Signal Generator) |
| Internal Baseband Generator | Optional; supports digital modulation formats including QPSK, QAM, CDMA, W-CDMA |
| Output Impedance | 50 Ohms |
| Switching Speed | Less than 10 ms (frequency and level) |
| Interface/Connectivity | GPIB (IEEE 488.2), RS-232C |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Model | MG3670B |
|---|

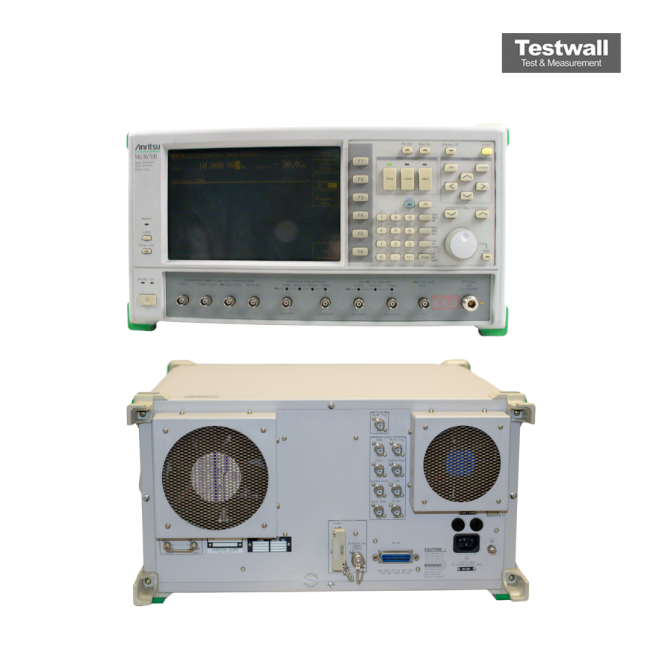

The Anritsu MG3670B Signal Generator is a high-performance digital modulation generator with a precision quadrature modulator. It spans 300 kHz to 2.25 GHz, delivering stable, spectrally pure output up to +13 dBm even under modulation, and offers a CMOS-level mode for I/Q input. Its input frequency band covers CDMA spread-spectrum applications.
Optimized for development and lab workflows, the MG3670B supports receiver sensitivity checks, excess-input testing, IF-stage performance verification, and device quality evaluation.
Testwall can supply the used Anritsu MG3670B Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3670B Signal Generator.
