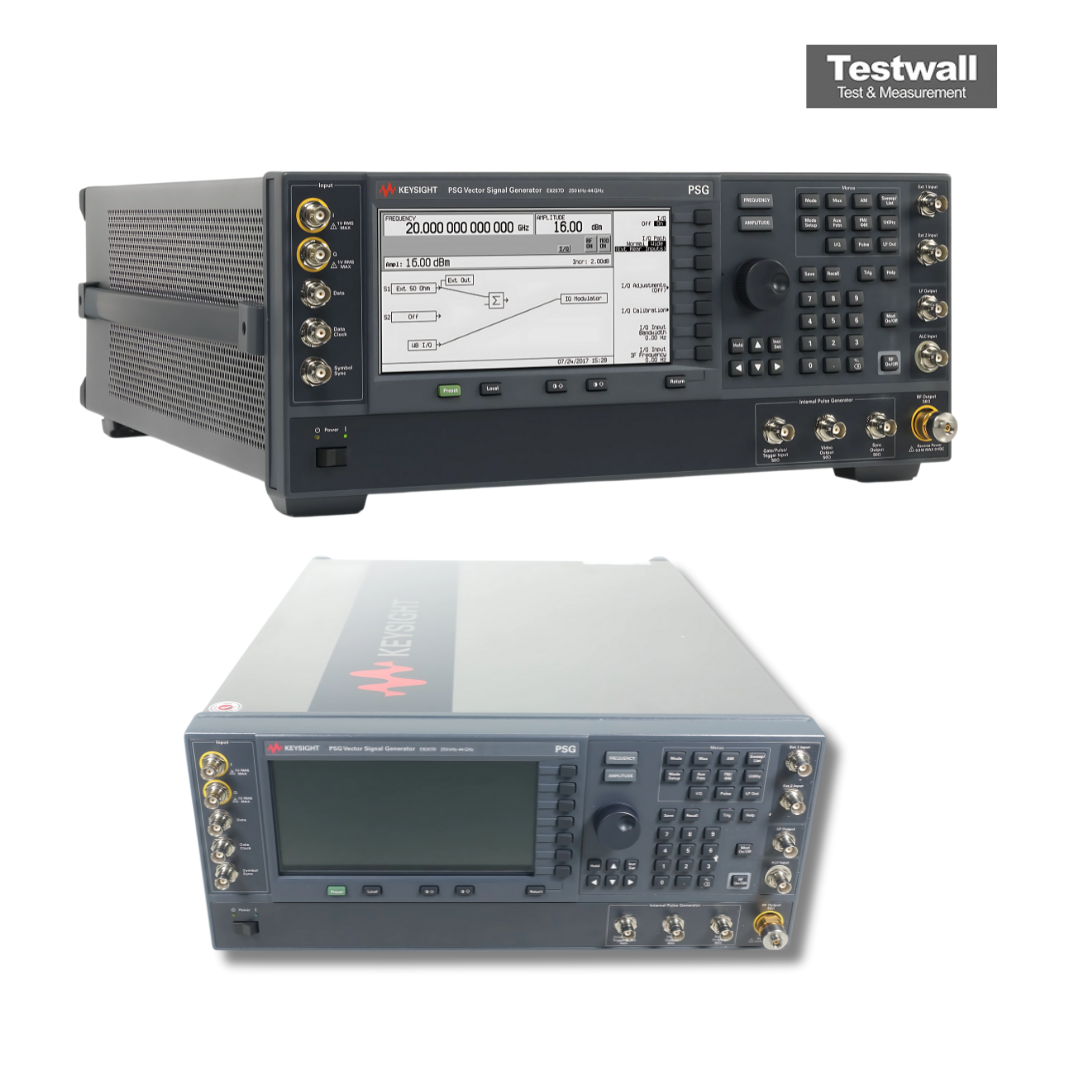

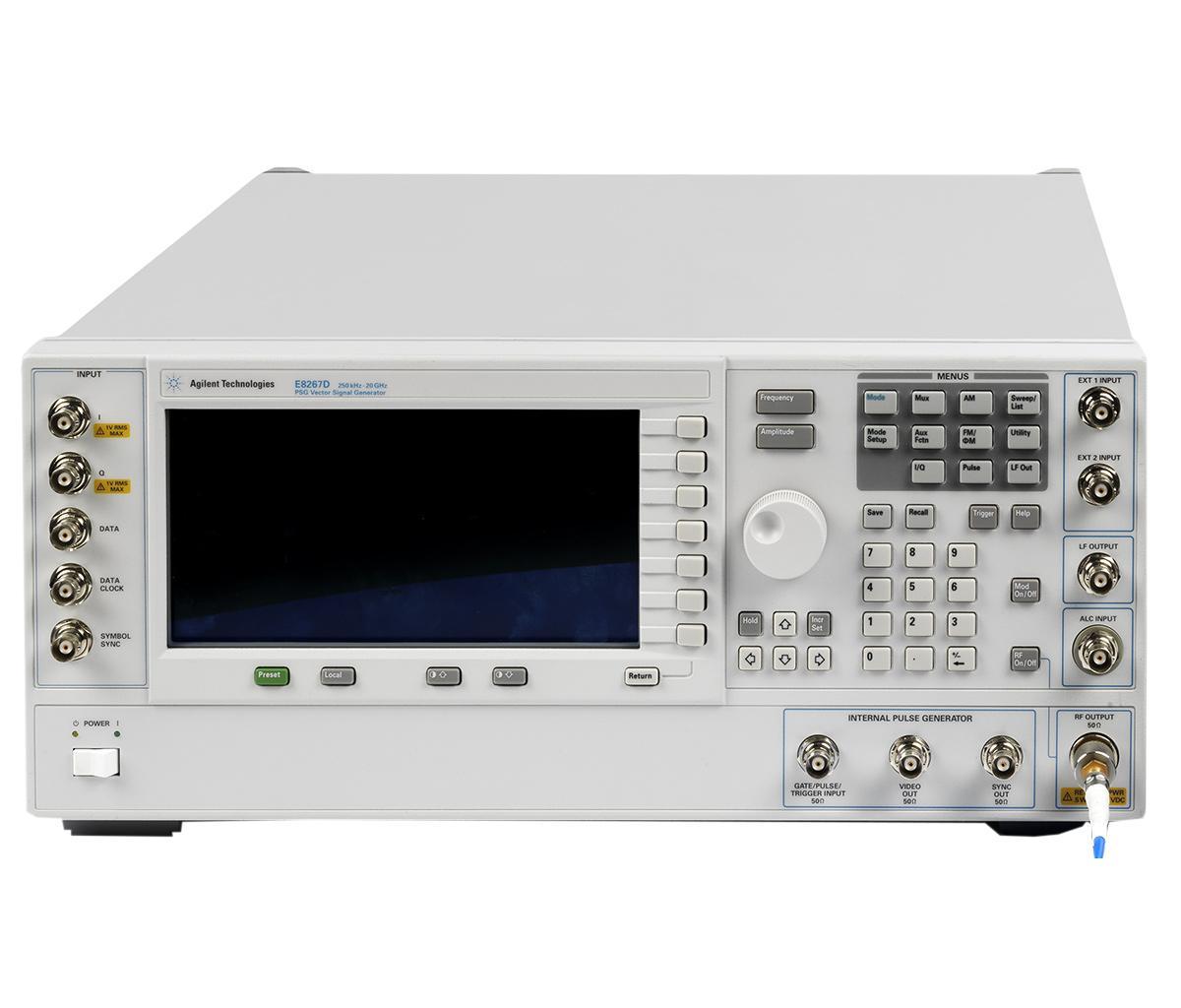

Keysight (Agilent) E8267D
Option 544 (100 kHz to 44 GHz) – PSG Vector Signal Generator, 2.4 mm (m)
100 kHz to 44 GHz Frequency Range
0.001 Hz Frequency Resolution
< 16 ms (typ.) Switching Speed
10 MHz, ±3 × 10⁻⁸ per year Timebase Aging
GPIB, LAN, RS-232 Interfaces
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 44 GHz |
| Frequency Resolution | 0.001 Hz |
| Switching Speed | < 16 ms (typ.) |
| Timebase Aging | 10 MHz, ±3 × 10⁻⁸ per year |
| Interfaces | GPIB, LAN, RS-232 |
| Output Power | up to +18 dBm at 3.2 to 20 GHz; +14 dBm at 20 to 32 GHz, +12 dBm at 32 to 40 GHz, +10 dBm at 40 to 44 GHz (spec.) |
| SSB Phase Noise | -110 dBc/Hz at 10 GHz, 20 kHz offset (spec.) |
| Modulation | I/Q, AM, FM, ΦM, pulse (depending on configuration) |
| Level Accuracy | ±0.6 dB at 250 kHz to 2 GHz (spec.) |
| Harmonics | < -55 dBc at 2 to 20 GHz (spec.) |
| Non-Harmonics | < -80 dBc at 250 MHz to 1 GHz, > 3 kHz offset (spec.) |
| Modulation Bandwidth | 80 MHz with external I/Q (±1 dB, typ.); internal baseband 100 MSa/s, 64 MSa (depending on configuration) |
| Sweep Modes | step sweep, list mode, ramp sweep, power sweep |
| RF Output Connector | 3.5 mm male or Type-N female; 2.4 mm male (depending on configuration) |
| Dimensions | 426 × 178 × 515 mm |
| Weight | < 25 kg |
Available configurations
| Model | Frequency range | Configuration |
| E8267D-520 | 100 kHz to 20 GHz | Vector signal generator |
| E8267D-532 | 100 kHz to 31.8 GHz | Vector signal generator |
| E8267D-544 | 100 kHz to 44 GHz | Vector signal generator |
Keysight Technologies E8267D-544 Options:
- E8267D-544 - 544 - Frequency range from 250 kHz to 44 GHz
- E8267D-544 - 602 - Internal baseband generator, 64 MSa memory
- E8267D-544 - 003 - Digital output connectivity with N5102A
- E8267D-544 - 004 - Digital input connectivity with N5102A
- E8267D-544 - 007 - Analog ramp sweep
- E8267D-544 - 009 - 8 GB removable flash memory
- E8267D-544 - 016 - Wideband external I/Q inputs
- E8267D-544 - 403 - Calibrated AWGN
- E8267D-544 - 409 - Global positioning system (GPS) personality
- E8267D-544 - 423 - Scenario generator for GPS personality
- E8267D-544 - UNX - Ultra low phase noise
- E8267D-544 - UNY - Enhanced ultra low phase noise
- E8267D-544 - UNT - AM, FM, phase modulation, and LF output
- E8267D-544 - UNU - Pulse modulation
- E8267D-544 - UNW - Narrow pulse modulation
- E8267D-544 - 1ED - Type-N (f) RF output connector
- E8267D-544 - 1EH - Improved harmonics below 2 GHz
- E8267D-544 - 1EM - Moves all front panel connectors to the rear panel
- E8267D-544 - 1CN - Front handle kit
- E8267D-544 - 1CM - Rackmount flange kit
- E8267D-544 - 1CP - Rackmount flange and front handle kit
- E8267D-544 - UK6 - Commercial calibration certificate and test data
- E8267D-544 - A6J - Z540-1-1994 calibration
- E8267D-544 - AMG - Calibration + uncertainties + guardbanding (accredited)
- E8267D-544 - 1A7 - Calibration + uncertainties + guardbanding
- E8267D-544 - CD1 - CD-ROM containing the English documentation set
- E8267D-544 - ABA - Printed copy of the English documentation set
- E8267D-544 - SP2 - Dynamic sequencing capability
- E8267D-544 - SP1 - Signal Studio for jitter injection
- E8267D-544 - H1S - 1 GHz external frequency reference input
- E8267D-544 - H1G - Connections for phase coherency and improved phase stability < 250 MHz
- E8267D-544 - HCC - Connections for phase coherency > 250 MHz
- E8267D-544 - H18 - Wideband modulation below 3.2 GHz
The Keysight (Agilent) E8267D-544 is a high-performance vector signal generator offering a frequency range up to approximately 44 GHz, enabling coherent signal generation and IQ vector modulation. It features broad frequency coverage, low phase noise, and full sweep mode capabilities, ideal for advanced testing applications.
Designed for wideband testing environments, it supports vector IQ output and consistent performance across frequency sweeps. The unit is optimized for high-frequency communication systems and complex signal simulations.
Testwall can supply the used Keysight (Agilent) E8267D-544, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8267D-544.
Options and configurations
- Frequency Range: 100 kHz to 44 GHz (Opt. 544)
- Output Power: up to +18 dBm at 3.2 to 20 GHz (Opt. 520); +14 dBm at 20 to 32 GHz, +12 dBm at 32 to 40 GHz, +10 dBm at 40 to 44 GHz (Opt. 532/544) (spec.)
- SSB Phase Noise: -110 dBc/Hz at 10 GHz, 20 kHz offset (spec.); -120 dBc/Hz at 10 GHz, 10 kHz offset with Opt. UNY (spec.)
- Modulation: I/Q, AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU/UNW); PSK, QAM, FSK, MSK with Opt. 602
- Modulation Bandwidth: 80 MHz with external I/Q (±1 dB, typ.); 2 GHz with Opt. 016 (nom.); internal baseband 100 MSa/s, 64 MSa (Opt. 602)
- Sweep Modes: step sweep, list mode, ramp sweep (Opt. 007), power sweep
- RF Output Connector: 3.5 mm male or Type-N female (Opt. 1ED) (Opt. 520); 2.4 mm male (Opt. 532/544)
