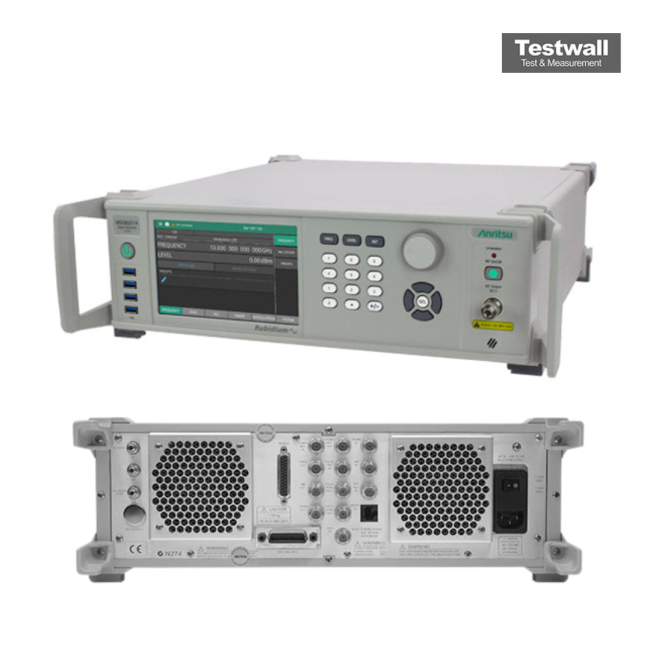

Anritsu MG37022A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Output Power Range | -20 dBm to +20 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise (at 10 GHz, 10 kHz offset) | -110 dBc/Hz |
| Switching Speed | Less than 5 ms (typical) |
| Modulation Types | AM, FM, Phase, Pulse |
| Connector Type | 2.92 mm (K-type) female |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to +55°C |
| Interface/Connectivity | GPIB, USB, LAN (Ethernet) |
| Model | MG37022A |
|---|
The Anritsu MG37022A is a high‑performance microwave signal generator offering a frequency range from 10 MHz to 20 GHz. It provides outstanding spectral purity and low phase noise, ideal for radar, satellite, and telecommunications testing. Fast frequency switching and precise output power control ensure reliable performance in demanding R&D and production environments.
With GPIB and Ethernet connectivity, the Anritsu MG37022A enables seamless remote automation and integration into advanced test systems. Its broad output power range supports flexible testing across diverse applications with high accuracy and efficiency.
Testwall can supply the used Anritsu MG37022A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG37022A.
