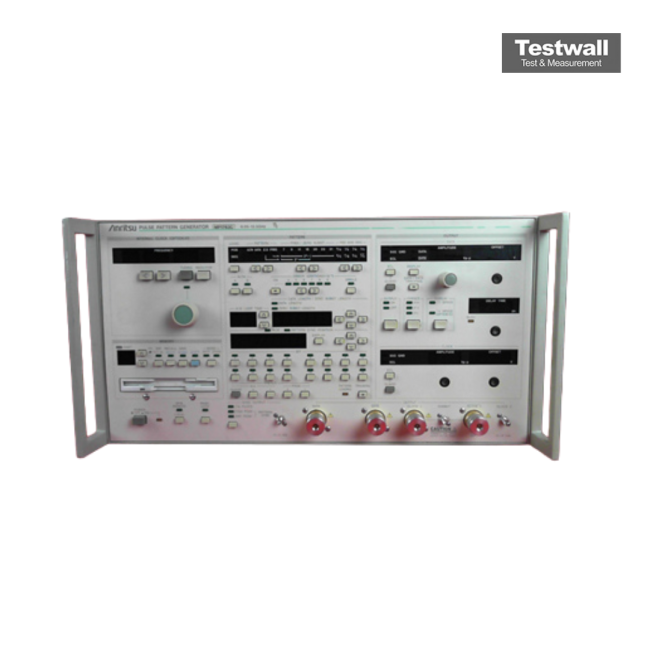

Anritsu MP1763C
| Attribute | Value |
|---|---|
| Bit Rate Range | 0.1 Gbit/s to 12.5 Gbit/s |
| Output Amplitude | 0.5 V to 2.0 V (into 50Ω) |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns |
| Output Interface | Single-ended and differential outputs |
| Rise/Fall Time | Less than 28 ps (20% to 80%) |
| Jitter (RMS) | Less than 1.5 ps RMS |
| Clock Source | Internal or external clock reference |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Interface/Connectivity | GPIB and RS-232 remote control interfaces |
Anritsu MP1763C Options:
- MP1763C - 01 - 12.5 GHz Synthesizer (50 MHz to 12.5 GHz)
- MP1763C - 03 - 1/4 Speed Output
- MP1763C - 08 - 1/4 Differential Data Output Function (100 Mbit/s to 3.125 Gbit/s)
| Model | MP1763C |
|---|
The Anritsu MP1763C Pulse Pattern Generator works with MP1764C or MP1764D Error Detectors for 12.5G BER testing. It allows clock and data signal amplitudes from 0.25 to 2 Vp-p with ±2 V offset adjustment, and includes a variable delay function for phase margin analysis. It supports M-series pseudorandom or programmable patterns with standard 1/8 parallel output and options for 1/4 parallel or differential outputs.
With differential inputs, low FM/PM-noise clock generator, and complementary outputs, it is optimized for high-speed logic, ICs, SAN devices, and digital system testing. The built-in 3.5-inch floppy drive and GPIB function simplify automated, repeatable measurements.
Testwall can supply the used Anritsu MP1763C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1763C.
