Anritsu MP1764C
| Attribute | Value |
|---|---|
| Bit Rate Range | 0.1 Gbit/s to 12.5 Gbit/s |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns up to 2^20 bits |
| Input Sensitivity | 0.15 V (peak-to-peak, minimum) |
| Input Voltage Range | 0.15 Vp-p to 2.0 Vp-p |
| Clock Input Frequency | 0.1 GHz to 12.5 GHz |
| Interface Type | GPIB (IEEE 488.2) |
| Measurement Function | Bit Error Rate (BER) measurement and error analysis |
| Input Impedance | 50 Ohms |
| Error Detection | Single-bit, burst error detection with gating function |
| Operating Temperature | 0°C to 40°C |
| Model | MP1764C |
|---|

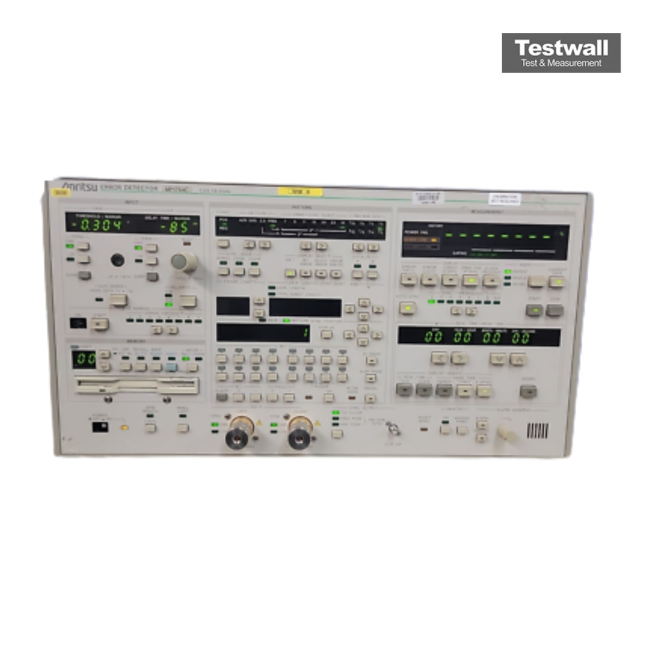

The Anritsu MP1764C Error Detector is a high-performance BERT system designed for 12.5G testing, offering differential inputs and ¼ differential outputs ideal for SAN market applications. It supports a wide frequency range from STM-0/STS-1 to 10 GbE, OTU-2, and 4.25G Fibre Channel, with options for Differential Input and Variable CDR from 62.5M to 11.1G. The system enables one-touch optimization for input threshold and phase adjustments.
Its auto-search, burst measurement, and quick pattern synchronization functions make it a versatile tool for ultrahigh-speed logic IC and digital communication system development.
Testwall can supply the used Anritsu MP1764C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1764C.
