Anritsu MP1800A-014
| Attribute | Value |
|---|---|
| Bit Rate Range | 0.1 Gbit/s to 14.05 Gbit/s |
| Output Amplitude | 0.5 V to 3.5 V (single-ended) |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns |
| Interface Type | Plug-in module for MP1800A Signal Quality Analyzer mainframe |
| Output Connector | SMA (female) |
| Rise/Fall Time | Less than 30 ps (20% to 80%) |
| Jitter Injection | Sinusoidal jitter and spread spectrum clock injection supported |
| Clock Source | Internal or external clock reference |
| Operating Temperature | 5°C to 40°C |
| Application | High-speed digital device characterization, SerDes testing, optical transceiver evaluation |
| Model | MP1800A-014 |
|---|

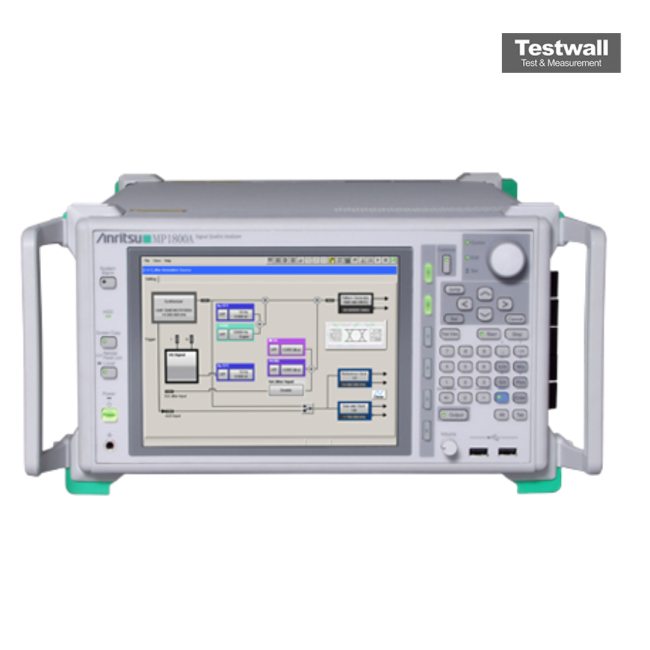

The Anritsu MP1800A-014 is an option module designed to enhance the MP1800A BERT platform with advanced jitter injection and clock modulation features. It supports compliance testing for high-speed serial standards such as PCIe, USB, and Ethernet, offering capabilities including sinusoidal jitter (SJ), random jitter (RJ), and bounded uncorrelated jitter (BUJ). Additionally, it provides clock pattern distortion simulation and seamless integration with other MP1800A modules, ensuring precise and reliable performance.
This module is essential for engineers conducting compliance evaluations of next-generation interfaces, combining accuracy with a user-friendly software interface for full modulation control.
Testwall can supply the used Anritsu MP1800A-014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1800A-014.
