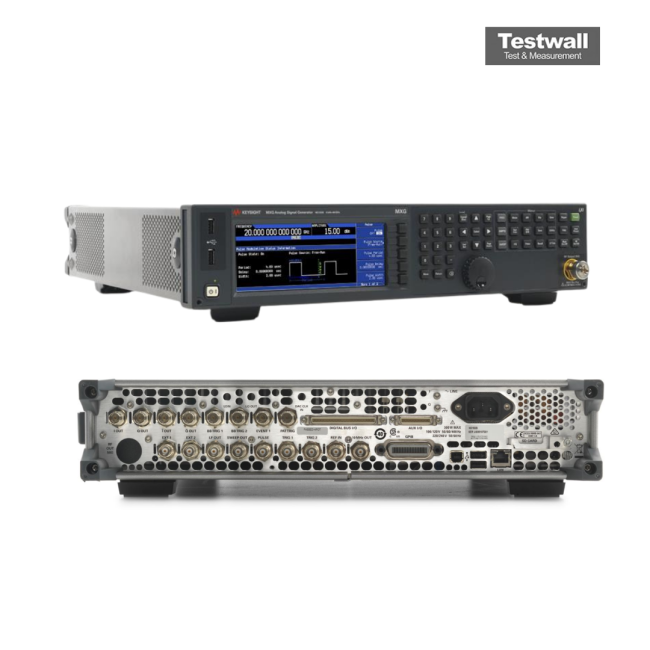

Keysight (Agilent) N5182B
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.001 Hz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | < ±1 × 10⁻⁷ per year |
| RF Output Connector | Type-N female |
| Interfaces | GPIB, LAN (LXI), USB |
| Frequency Range | 9 kHz to 3 or 6 GHz |
| Output Power | -144 to +18 dBm at 10 MHz to 3 GHz |
| SSB Phase Noise | -134 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Modulation | AM, FM, ΦM, pulse, I/Q (depending on configuration) |
| Level Accuracy | ±0.6 dB (spec.) at 5 MHz to 6 GHz, max. to -60 dBm |
| Harmonics | < -35 dBc (spec.) at 9 kHz to 3 GHz |
| Non-Harmonics | -75 to -87 dBc (spec.), >10 kHz offset |
| Switching Speed | ≤ 1.15 ms (typ.) |
| Dimensions | 426 × 88 × 489 mm |
| Weight | 15.9 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5182B-503 | 9 kHz to 3 GHz | Vector signal generator |
| N5182B-506 | 9 kHz to 6 GHz | Vector signal generator |
Keysight (Agilent) N5182B MXG X-Series RF Options:
- N5182B - 503 - Frequency range 9 kHz to 3 GHz
- N5182B - 506 - Frequency range 9 kHz to 6 GHz
- N5182B - FRQ - Frequency extension to 7.2 GHz (requires Option 506 and N5182BX07 Frequency Extender)
- N5182B - 1EA - High output power
- N5182B - 1EL - Differential I/Q outputs
- N5182B - 1EM - Rear panel RF output and I/Q inputs
- N5182B - 1EQ - Extended power range (down to -127 dBm)
- N5182B - 1ER - External reference input 1 to 50 MHz
- N5182B - 003 - Digital baseband output (requires N5102A)
- N5182B - 004 - Digital baseband input (requires N5102A)
- N5182B - 006 - Removable SD card storage (up to 8 GB)
- N5182B - 009 - 30 GB internal solid state memory
- N5182B - 012 - Phase coherence (LO input/output)
- N5182B - 022 - 512 Msa waveform playback memory
- N5182B - 023 - 1024 Msa waveform playback memory
- N5182B - 302 - Avionics (VOR, ILS localizer/glide slope, marker beacon)
- N5182B - 303 - Multifunction generator
- N5182B - 320 - Pulse train generator (requires Option UNW)
- N5182B - 403 - Additive white Gaussian noise (AWGN)
- N5182B - 430 - Multitone and two-tone
- N5182B - 431 - Custom modulation (ARB and real-time mode)
- N5182B - 432 - Real-time phase noise impairments
- N5182B - 656 - Baseband generator with 100 MSa/s sample rate and 80 MHz RF bandwidth
- N5182B - 657 - Baseband generator upgrade to 200 MSa/s sample rate and 160 MHz RF bandwidth
- N5182B - 660 - Real-time baseband generator
- N5182B - SD0 - No internal non-volatile memory (security)
- N5182B - UN7 - Bit error rate (BER) analyzer
- N5182B - UNT - AM, FM, and phase modulation
- N5182B - UNW - Narrow pulse modulation and internal pulse generator
- N5182B - UNX - Ultra-low phase noise performance
- N5182B - UNY - Ultra-low phase noise with signal-to-noise optimization mode
- N5182B - UNZ - Fast switching speed
- N5182B - UNV - Optimized ACPR/EVM performance
The Keysight (Aglient) N5182B MXG X‑Series RF Signal Generator offers a frequency range of 9 kHz to 6 GHz, 160 MHz bandwidth, and exceptional performance in phase noise (–146 dBc/Hz), EVM (0.4%), and ACPR (–73 dBc). It includes 1024 MSa of waveform memory and a max output of +27 dBm.
Ideal for receiver testing and amplifier characterization, it supports LTE, WLAN, GNSS signal creation via PathWave software, and reduces testing time and costs with its advanced hardware and 3-year calibration cycle.
Testwall can supply the used Keysight (Aglient) N5182B MXG X‑Series RF Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Aglient) N5182B MXG X‑Series RF Signal Generator.
Options and configurations
- Frequency Range: 9 kHz to 3 or 6 GHz (Opt. 503/506)
- Output Power: -144 to +18 dBm (+24 dBm with Opt. 1EA) at 10 MHz to 3 GHz
- SSB Phase Noise: -134 dBc/Hz at 1 GHz, 20 kHz offset (typ.); -146 dBc/Hz (typ.) with Opt. UNX
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNW), I/Q
- Switching Speed: ≤ 1.15 ms (typ.); ≤ 950 µs (typ.) with Opt. UNZ
- Modulation Bandwidth: 160 MHz RF (I+Q) internal with Opt. 656/657
