Anritsu

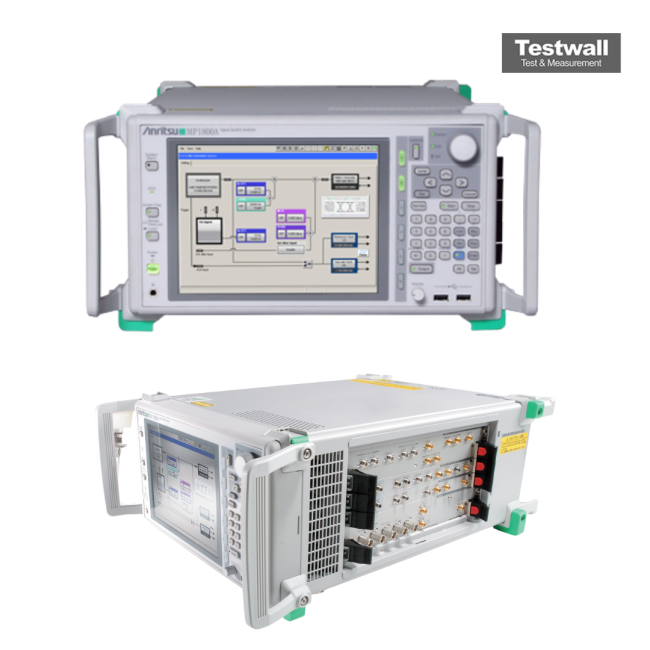

Anritsu MP1800A
Signal Quality Analyzer High-performance BERT
0.1 Gbps to 32.1 Gbps Bit Rate Range
0.5 Vp-p to 3.5 Vp-p (into 50 Ω) Output Amplitude
2^7-1 to 2^31-1 PRBS, programmable word patterns up to 2^20 bits Pattern Length
Sinusoidal jitter injection up to 10 UI amplitude Jitter Tolerance Measurement
Up to 4 module slots for signal quality analyzer and pulse pattern generator modules Interface Slots
| Attribute | Value |
|---|---|
| Bit Rate Range | 0.1 Gbps to 32.1 Gbps |
| Output Amplitude | 0.5 Vp-p to 3.5 Vp-p (into 50 Ω) |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns up to 2^20 bits |
| Jitter Tolerance Measurement | Sinusoidal jitter injection up to 10 UI amplitude |
| Interface Slots | Up to 4 module slots for signal quality analyzer and pulse pattern generator modules |
| Bit Error Rate Sensitivity | Minimum detectable BER of 1×10^-12 |
| Clock Reference | Internal reference clock with external clock input capability (10 MHz reference) |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Connectivity & Control | GPIB, USB, and LAN (Ethernet) remote control interfaces |
Anritsu MP1800A Options:
- MP1800A - 015 - 4-slot for PPG and/or ED
- MP1800A - 032 - 32 Gbit/s PPG and/or ED Support
- MU183020A - 001 - 32G bit/s Extension
- MU183020A - 012 - 1ch 2 V Data Output
- MU183020A - 013 - 1ch 3.5 V Data Output
- MU183020A - 022 - 2ch 2 V Data Output
- MU183020A - 023 - 2ch 3.5 V Data Output
- MU183020A - 030 - 1ch Data Delay
- MU183020A - 031 - 2ch Data Delay
- MU183020A - 101 - 32G bit/s Extension Retrofit
- MU183020A - 112 - 1ch 2 V Data Output Retrofit
- MU183020A - 113 - 1ch 3.5 V Data Output Retrofit
- MU183020A - 122 - 2ch 2 V Data Output Retrofit
- MU183020A - 123 - 2ch 3.5 V Data Output Retrofit
- MU183020A - 130 - 1ch Data Delay Retrofit
- MU183020A - 131 - 2ch Data Delay Retrofit
- MU183020A - ES310 - Three Years Extended Warranty Service
- MU183020A - ES510 - Five Years Extended Warranty Service
- MU183021A - 001 - 32G bit/s Extension
- MU183021A - 012 - 4ch 2.0 V Data Output
- MU183021A - 013 - 4ch 3.5 V Data Output
- MU183021A - 030 - 4ch Data Delay
- MU183021A - 101 - 32G bit/s Extension Retrofit
- MU183021A - 112 - 4ch 2.0 V Data Output Retrofit
- MU183021A - 113 - 4ch 3.5 V Data Output Retrofit
- MU183021A - 130 - 4ch Data Delay Retrofit
- MU183021A - ES310 - Three Years Extended Warranty Service
- MU183021A - ES510 - Five Years Extended Warranty Service
- MU183040B - 001 - 32 Gbit/s Extension
- MU183040B - 010 - 1ch ED
- MU183040B - 020 - 2ch ED
- MU183040B - 022 - 2.4G to 28.1G bit/s Clock Recovery
- MU183040B - 023 - 25.5G to 32.1G bit/s Clock Recovery
- MU183040B - 101 - 32 Gbit/s Extension Retrofit
- MU183040B - 110 - 1ch ED Retrofit
- MU183040B - 120 - 2ch ED Retrofit
- MU183040B - 122 - 2.4G to 28.1G bit/s Clock Recovery Retrofit
- MU183040B - 123 - 25.5G to 32.1G bit/s Clock Recovery Retrofit
- MU183040B - ES310 - Three Years Extended Warranty Service
- MU183040B - ES510 - Five Years Extended Warranty Service
- MU183041B - 001 - 32 Gbit/s Extension
- MU183041B - 022 - 2.4G to 28.1G bit/s Clock Recovery
- MU183041B - 023 - 25.5G to 32.1G bit/s Clock Recovery
- MU183041B - 101 - 32 Gbit/s Extension Retrofit
- MU183041B - 122 - 2.4G to 28.1G bit/s Clock Recovery Retrofit
- MU183041B - 123 - 25.5G to 32.1G bit/s Clock Recovery Retrofit
- MU183041B - ES310 - Three Years Extended Warranty Service
- MU183041B - ES510 - Five Years Extended Warranty Service
- MU181000B - 001 - Jitter Modulation
- MP1825B - 001 - 14 Gbit/s Operation
- MP1825B - 002 - 28 Gbit/s Operation
- MP1825B - 003 - 14 Gbit/s Variable Data Delay
- MP1825B - 004 - 28 Gbit/s Variable Data Delay
- MP1825B - 005 - 14.1 Gbit/s Extension
- MP1825B - 006 - 32.1 Gbit/s Extension
- MP1825B - 103 - 14 Gbit/s Variable Data Delay Retrofit
- MP1825B - 104 - 28 Gbit/s Variable Data Delay Retrofit
- MP1825B - 105 - 14.1 Gbit/s Extension Retrofit
- MP1825B - 106 - 32.1 Gbit/s Extension Retrofit
- MX183000A - PL001 - Jitter Tolerance Test
- MX183000A - PL011 - PCIe Link Sequence
- MX183000A - PL012 - USB Link Sequence
| Model | MP1800A |
|---|
The Anritsu MP1800A Signal Quality Analyzer (SQA) delivers precise bit error rate and signal quality analysis across speeds from 100 Mbit/s to 28 Gbit/s, expandable up to 50 Gbit/s. Its modular chassis integrates Pulse Pattern Generator (PPG) and Error Detectors (ED), supporting flexible configurations for advanced digital testing applications.
With multi-channel parallel testing, jitter modulation up to 25 Gbit/s, and optical/electrical interface options, the MP1800A is ideal for validating high-speed logic, 100 GE development, ICs, and optical modulators.
Testwall can supply the used Anritsu MP1800A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1800A.
