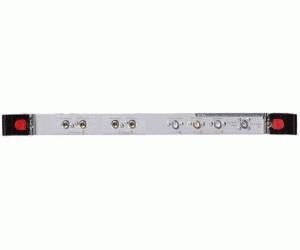

Anritsu MU183040B
28G/32G bit/s high-sensitivity error detector module, 1 or 2 ch, for MP1800A
2.4 to 28.1 Gbit/s (32.1 Gbit/s with opt. 001) Bit Rate
1 or 2 Channels
0.05 to 1.0 Vp-p Input Amplitude
15 mVp-p eye amplitude; 10 mVp-p eye height Sensitivity (typ., 28.1 Gbit/s)
20 ps at 28.1 Gbit/s Phase Margin
| Attribute | Value |
|---|---|
| Bit Rate | 2.4 to 28.1 Gbit/s (32.1 Gbit/s with opt. 001) |
| Channels | 1 or 2 |
| Input Amplitude | 0.05 to 1.0 Vp-p |
| Sensitivity (typ., 28.1 Gbit/s) | 15 mVp-p eye amplitude; 10 mVp-p eye height |
| Phase Margin | 20 ps at 28.1 Gbit/s |
| Threshold Range | -3.5 to +3.3 V, 1 mV steps |
| Clock Recovery (option) | 2.4-28.1 Gbit/s (+/-200 ppm) or 25.5-32.1 Gbit/s (+/-100 ppm) |
| Multi-channel Sync | Up to 8 ch at 32 Gbit/s |
Anritsu MU183040B Options:
- MU183040B-001 - 32 Gbit/s extension
- MU183040B-010 - 1ch ED
- MU183040B-020 - 2ch ED
- MU183040B-022 - 2.4 to 28.1 Gbit/s clock recovery
- MU183040B-023 - 25.5 to 32.1 Gbit/s clock recovery (requires -001)
- MU183040B-101 - 32 Gbit/s extension retrofit
- MU183040B-122 - 2.4 to 28.1 Gbit/s clock recovery retrofit
- MU183040B-123 - 25.5 to 32.1 Gbit/s clock recovery retrofit
The MU183040B is a high-sensitivity 1- or 2-channel NRZ error detector plug-in for the MP1800A, operating from 2.4 to 28.1 Gbit/s or 32.1 Gbit/s with option 001. It offers 15 mVp-p typical sensitivity, automatic threshold and phase alignment, and optional clock recovery.
Fits the MP1800A (requires MP1800A-032) and pairs with the MU183020A PPG; suited to low-amplitude devices such as backplanes and active optical cables.
Testwall can supply the used Anritsu MU183040B, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Anritsu MU183040B.
