Anritsu MP1801A
| Attribute | Value |
|---|---|
| Bit Rate | Up to 12.5 Gbit/s |
| Data Pattern | PRBS (2^7-1, 2^10-1, 2^15-1, 2^23-1, 2^31-1), Zero Substitution, Data (0/1) |
| Output Amplitude | 0.5 V to 2.0 V (into 50 Ω) |
| Output Impedance | 50 Ω |
| Rise/Fall Time | ≤ 30 ps (20% to 80%) |
| Jitter | ≤ 3 ps RMS (intrinsic) |
| Clock Input Frequency Range | 50 MHz to 12.5 GHz |
| Interface | GPIB, RS-232C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Model | MP1801A |
|---|

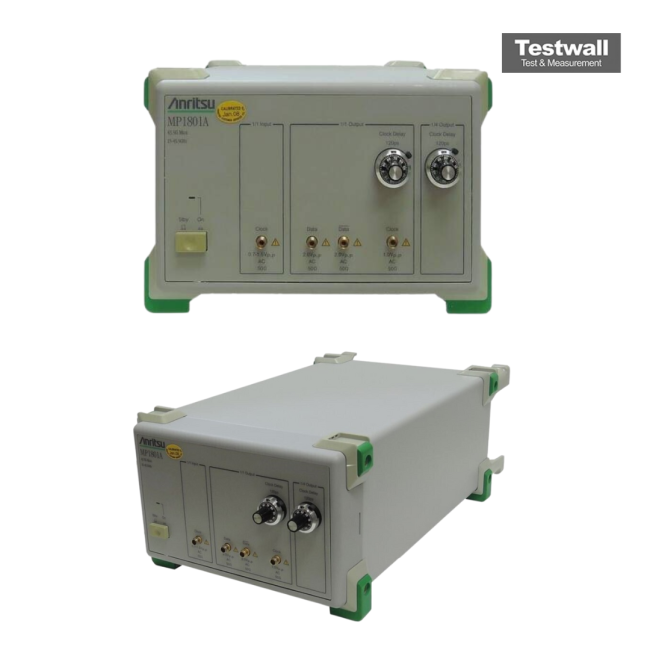

The Anritsu MP1801A is a high-performance 4x1 multiplexer designed for signal generation at data rates up to 43.5 Gb/s. It supports four parallel input channels handling up to 10.875 Gb/s each, providing a multiplexed serial output with excellent waveform quality. Equipped with low jitter, low distortion, and versatile clock output options, it seamlessly integrates with Anritsu Pulse Pattern Generators and BER Test Systems.
Compact and user-friendly, the MP1801A is widely used in R&D and manufacturing of 40 Gb/s transmission systems. It enables precise testing of optical modules, subsystems, MUX/DEMUX devices, and components supporting FEC, Non-FEC, and Super FEC rates.
Testwall can supply the used Anritsu MP1801A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1801A.
