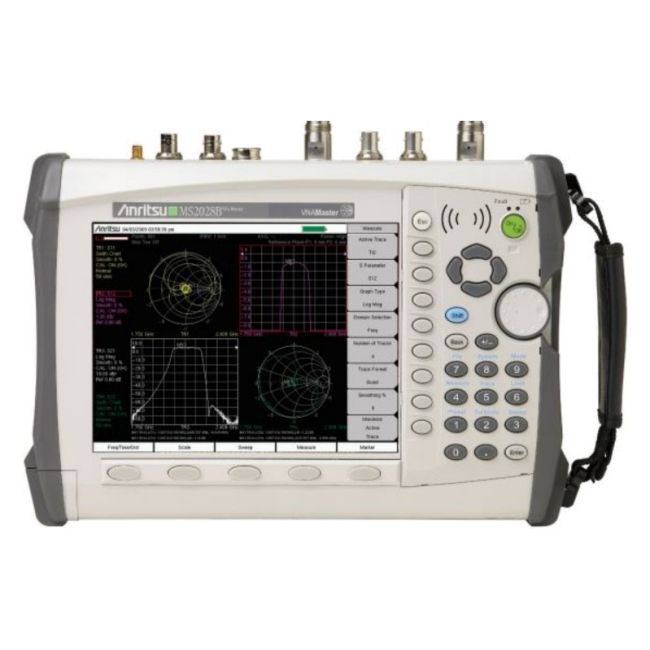

Anritsu MS2026B
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 4 GHz |
| Dynamic Range | >90 dB |
| Output Power Range | -50 dBm to +10 dBm |
| Return Loss Measurement Range | 0 to 65 dB |
| Number of Data Points | 2 to 1001 |
| Connector Type | N-Type (f), 50 Ohm |
| Battery Life | Up to 3 hours (internal battery) |
| Display | 7-inch sunlight-viewable color LCD touchscreen |
| Weight | 3.1 kg (6.8 lbs) with battery |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Anritsu MS2026B Options:
- MS2026B - 0002 - Time Domain (includes DTF capability)
- MS2026B - 0005 - Power Monitor (requires external detector)
- MS2026B - 0007 - Secure Data Operation
- MS2026B - 0010 - Built-in Bias-Tee
- MS2026B - 0015 - Vector Voltmeter
- MS2026B - 0019 - High Accuracy Power Meter (requires external USB sensor)
- MS2026B - 0031 - GPS Receiver (requires GPS antenna, 2000-1528-R)
- MS2026B - 0077 - Balanced/Differential S-Parameters, 1-port
- MS2026B - 0098 - Z-540 Calibration
- MS2026B - 0099 - Premium Calibration
| Model | MS2026B |
|---|
The Anritsu MS2026B VNA Master + Spectrum Analyzer spans from 5 kHz to 20 GHz, offering exceptional frequency coverage for cable, antenna, component, and signal analysis in the field. It packs the industry’s first 12‑term error correction algorithm into a rugged, battery‑operated handheld multi‑function unit with optional Time Domain features like Low Pass Step response, Real Impedance graphs, and a TDR‑style display.
Engineered for spectrum monitoring, interference diagnostics, broadcast verification, RF/microwave measurements, regulatory compliance, and 3G/4G or wireless data network testing, the MS2026B empowers fast, reliable field measurements.
Testwall can supply the used Anritsu MS2026B, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2026B.
